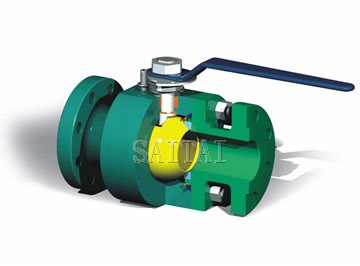

Forged Steel Floating Ball Valves

Features

Size: 1/2"~4"
Class: 150~2500
Two Pieces Forged Steel Body
Floating Ball, Full & Reduced Bore
Anti-Static Device
Blow-out Proof Stem
Fire Safe Design
Low Emission

Design: ASME B16.34/BS 5351
Face to Face: ASME B16.10
End to End: ASME B16.10
End Flange: ASME B16.5
BW End: ASME B16.25
Test: API 598/ BS 6755
Fire Safe Test: API 607/API 6FA
Special: NACE MR-01-75

Materials

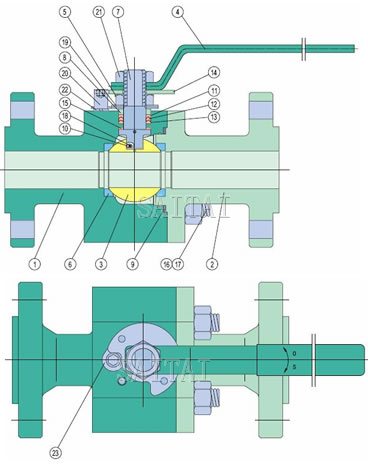

Materials of Forged Steel Floating Ball Valves

No.	Part	Material
1	Body	ASTM A105, ASTM A182-F316, ASTM A350-LF2
2	Adapter	ASTM A105, ASTM A182-F316, ASTM A350-LF2
3	Ball	ASTM A105/ENP, ASTM A182-F316
4	Lever	Carbon Steel
5	Locked washer	Carbon Steel, Stainless Steel
6	Seat	PTFE / Nylon
7	Stem	ASTM A182-F6a, ASTM A182-F316
8	Gland	ASTM A276-410, ASTM A182-F316
9	* Body Gasket	304SS+Graphite, 316SS+Graphite
10	Steel Ball	Stainless Steel
11	* Top Packing	PTFE / Graphite
12	* Middle Packing	PTFE / Graphite
13	* Bottom Packing	PTFE / Graphite
14	Stop Plate	Carbon Steel, Stainless Steel
15	Thrust Washer	PTFE
16	Body Stud	ASTM A193-B7, ASTM A193-B8, ASTM A320-L7M
17	Body Nut	ASTM A194-2H, ASTM A194-8, ASTM A194-7M
18	Antistatic Spring	Stainless Steel
19	Dished Spring	Alloy Steel, Stainless Steel
20	Screw	Carbon Steel, Stainless Steel
21	Nut	Carbon Steel, Stainless Steel
22	Washer	Carbon Steel, Stainless Steel
23	Locked Plate	Carbon Steel, Stainless Steel

ASME Pressure Class 150 Lb-Two-Piece (2PC)
PTFE / Nylon Seated-Forged-Floating-Full Bore-Dimensions and Weights

Size	D	L	H	W	Weight
in	mm	mm	mm	mm	Kg
1/2	13	108	75	130	2.8
3/4	19	117	84	170	3.7
1	25	127	90	170	5.3
1-1/2	38	165	127	250	8.3
2	51	178	140	250	11.2
2-1/2	64	191	164	350	18.4
3	76	203	177	350	23
4	102	229	206	420	39.3

ASME Pressure Class 150 Lb-Two-Piece (2PC)
PTFE / Nylon Seated-Forged-Floating-Reduce Bore-Dimensions and Weights

Size	d	D	L	H	W	Weight
in	mm	mm	mm	mm	mm	Kg
3/4*1/2	13	19	117	75	130	3.5
1*3/4	19	25	127	84	170	5
1-1/2*1	25	38	165	90	170	7.5
2*1-1/2	38	51	178	127	250	10
2-1/2*2	51	64	191	140	250	16
3*2	51	76	203	140	250	21
4*3	76	102	229	177	350	35
6*4	102	152	267	206	420	73

ASME Pressure Class 300 Lb-Two-Piece (2PC)
PTFE / Nylon Seated-Forged-Floating-Full Bore-Dimensions and Weights

Size	D	L	H	W	Weight
in	mm	mm	mm	mm	Kg
1/2	13	108	75	130	3
3/4	19	117	84	170	4
1	25	127	90	170	6.6
1-1/2	38	165	127	250	12.9
2	51	178	140	250	18.9
2-1/2	64	191	164	350	28
3	76	203	177	350	39
4	102	229	206	420	60

ASME Pressure Class 300 Lb-Two-Piece (2PC)
PTFE / Nylon Seated-Forged-Floating-Reduce Bore-Dimensions and Weights

Size	d	D	L	H	W	Weight
in	mm	mm	mm	mm	mm	Kg
3/4*1/2	13	19	117	75	130	3.7
1*3/4	19	25	127	84	170	5.8
1-1/2*1	25	38	165	90	170	10.5
2*1-1/2	38	51	178	127	250	16.1
2-1/2*2	51	64	191	140	250	24.5
3*2	51	76	203	140	250	34.7
4*3	76	102	229	177	350	53
6*4	102	152	267	206	420	100

ASME Pressure Class 600 Lb-Two-Piece (2PC)
PTFE / Nylon Seated-Forged-Floating-Full Bore-Dimensions and Weights

Size	D	L	H	W	Weight
in	mm	mm	mm	mm	Kg
1/2	13	165	80	170	3.5
3/4	19	191	89	200	5
1	25	216	95	200	7.5
1-1/2	38	241	132	350	15
2	51	292	145	350	23
3	64	356	182	420	48
4	76	432	211	700	80

ASME Pressure Class 600 Lb-Two-Piece (2PC)
PTFE / Nylon Seated-Forged-Floating-Reduce Bore-Dimensions and Weights

Size	d	D	L	H	W	Weight
in	mm	mm	mm	mm	mm	Kg
3/4*1/2	13	19	229	75	140	7
1*3/4	19	25	254	91	180	9.5
1-1/2*1	25	38	305	108	250	16.5
2*1-1/2	38	51	368	133	400	23
3*2	51	76	381	150	500	42
4*3	76	102	457	165	500	65

ASME Pressure Class 900 Lb-Two-Piece (2PC)
PTFE / Nylon Seated-Forged-Floating-Full Bore-Dimensions and Weights

Size	D	L	H	W	Weight
in	mm	mm	mm	mm	Kg
1/2	13	216	75	140	5
3/4	19	229	91	180	8
1	25	254	108	250	10
1-1/2	38	305	133	400	20
2	51	368	150	500	30
3	76	381	160	500	55

ASME Pressure Class 900 Lb-Two-Piece (2PC)
PTFE / Nylon Seated-Forged-Floating-Reduce Bore-Dimensions and Weights

Size	d	D	L	H	W	Weight
in	mm	mm	mm	mm	mm	Kg
3/4*1/2	13	19	229	75	140	7
1*3/4	19	25	254	91	180	9.5
1-1/2*1	25	38	305	108	250	16.5
2*1-1/2	38	51	368	133	400	23
3*2	51	76	470	150	500	60
4*3	76	102	546	160	500	78

ASME Pressure Class 1500 Lb-Two-Piece (2PC)
PTFE / Nylon Seated-Forged-Floating-Full Bore-Dimensions and Weights

Size	D	L	H	W	Weight
in	mm	mm	mm	mm	Kg
1/2	13	216	75	140	5
3/4	19	229	91	180	8
1	25	254	108	250	10
1-1/2	38	305	133	400	20
2	51	368	150	500	30
3	76	470	160	500	65

ASME Pressure Class 1500 Lb-Two-Piece (2PC)
PTFE / Nylon Seated-Forged-Floating-Reduce Bore-Dimensions and Weights

Size	d	D	L	H	W	Weight
in	mm	mm	mm	mm	mm	Kg
3/4*1/2	13	19	229	75	140	7
1*3/4	19	25	254	91	180	9.5
1-1/2*1	25	38	305	108	250	16.5
2*1-1/2	38	51	368	133	400	23
3*2	51	76	470	150	500	60
4*3	76	102	546	160	500	78

ASME Pressure Class 2500 Lb-Two-Piece (2PC)
PTFE / Nylon Seated-Forged-Floating-Full Bore-Dimensions and Weights

Size	D	L	H	W	Weight
in	mm	mm	mm	mm	Kg
1/2	13	264	88	230	7.5
3/4	19	273	117	230	12
1	25	308	128	300	15
1-1/2	38	384	148	400	30
2	51	451	183	500	37.5

ASME Pressure Class 2500 Lb-Two-Piece (2PC)
PTFE / Nylon Seated-Forged-Floating-Reduce Bore-Dimensions and Weights

Size	d	D	L	H	W	Weight
in	mm	mm	mm	mm	mm	Kg
3/4*1/2	13	19	273	88	230	11
1*3/4	19	25	308	117	230	14
1-1/2*1	25	38	384	128	300	25
2*1-1/2	38	51	451	148	400	35
3*2	51	76	578	183	500	60

Forged Steel Floating Ball Valves Related Products

Next:Three-Piece (3PC) Forged Floating Ball Valves

Catalog:ball valve

Above:One-Piece (1PC) Cast Steel Floating Ball Valves
