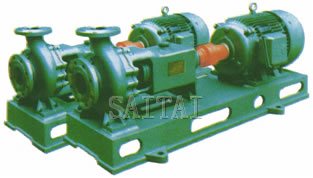

Fij Series Chemical Centrifugal Pump

I Chemical Centrifugal Pump Summary

On the basis of model IH pump series,model FIJ cantilever-type single-stage-single-suction centrifugal chemical pump is a new product which is designed with overseas updated technologies for reference.Its rated performance and install at-ion dimension are up to ISO2858 standards,while its production technology less than 50% solid granules in chemical process.
Compared with model IH pump, model FIJ chemical centrifugal pump hays the following features in structure:

Shortened cantilever of the blade wheel, and increased diameter of the shaft;
Spiral case of unsymmetrical section, pump casing without mouth ring;
Three imported bearings are used.
A new seal, which is similar to overseas advanced double-end mechanical seal or filling seal, is installed

Because of the above structure characters, the pump has the following advantages

When used in conveying media with high viscosity or containing solid granules, the pump has higher efficiency, compared with model IH pump.
The spiral case with unsymmetrical section may lower the shock loss of liquid and shorten the size of pump casing.
Because of increased strength of shaft and lowered deflection of rotor, the pump can operate smoothly and the seal have a long life.
Because the blade wheel and its nuts are integrated, it can improve the feeding condition of the pump and strengthen the cavitations-proof performance of the pump.
With advanced seal form, it is ensured that the pump has better seal effect and less leakage.
The gap of the pump can be adjusted without disassembling pump casing and blade wheel.

This can lower the maintenance time and save the maintenance cost.

II Chemical Centrifugal Pump Behaviour Parameter

Model	Capacity Q		Head H(m)	Speed (r/min)	Power		Efficiency η (%)	NPSH r (m)
Model	m³/h	L/S	Head H(m)	Speed (r/min)	Shaft Power	Motor Power	Efficiency η (%)	NPSH r (m)
FIJ32-20-125	3.2	0.88	20	2900	0.48	Select according to viscosity and granity of liquid	35	5.0
FIJ32-20-160	3.2	0.88	32		0.93		30	3.5
FIJ32-20-200	3.2	0.88	50		1.62		27	4.0
FIJ32-20-250	3.2	0.88	80		4.1		17	4.5
FIJ40-20-125	6.3	1.74	20		0.66		52	5.0
FIJ40-25-160	6.3	1.74	32		1.53		36	3.5
FIJ40-25-200	6.3	1.74	50		2.52		34	3.5
FIJ40-25-250	6.3	1.74	80		5.3		26	4.5
FIJ50-32-125	7.5	2.08	23	2900	1.09		43	2.0
	12.5	3.47	20		1.33		51	2.0
	15.0	4.17	18		1.50		49	2.5
FIJ50-32-125A	6.8	1.89	18.8	2900	1.87		40	2.0
	11.3	3.14	16.4		1.01		50	2.0
	13.6	3.78	14.7		1.16		47	2.5
FIJ50-32-125	3.75	1.04	5.57	1450	0.16		36	2.0
	6.3	1.74	5.0		0.19		45	2.0
	7.5	2.08	4.5		0.21		44	2.0
FIJ50-32-125A	3.4	0.94	4.7	1450	0.13		33.3	2.0
	5.7	1.59	4.1		0.149		43	2.0
	6.8	1.89	3.7		0.163		42	2.2
FIJ50-32-160	7.5	2.08	34.5	2900	2.13		33	2.0
	12.5	3.47	32		2.37		46	2.0
	15.0	4.17	30		2.45		50	2.5
FIJ50-32-160A	6.8	1.89	28.5	2900	1.76		30	2.0
	11.3	3.14	26.4		1.85		44	2.0
	13.6	3.78	24.8		1.91		48	2.5
FIJ50-32-160	3.75	1.04	8.6	1450	0.30		29	2.0
	6.3	1.74	8.0		0.34		40	2.0
	7.5	2.08	7.5		0.36		43	2.2
FIJ50-32-160A	3.4	0.94	7.1	1450	0.253		25.9	2.0
	5.7	1.59	6.6		0.277		37.1	2.0
	6.8	1.89	6.2		0.280		41	2.2
FIJ50-32-200	7.5	2.08	51.8	2900	3.78		28	2.0
	12.5	3.47	50		4.36		39	2.0
	15.0	4.17	48		4.56		43	2.5
FIJ50-32-200A	6.8	1.89	42.7	2900	3.16		25	2.0
	11.3	3.14	41		3.24		38	2.0
	13.6	3.78	39.5		3.57		41	2.5
FIJ50-32-200	3.75	1.04	12.9	1450	0.57		23	2.0
	6.3	1.74	12.5		0.65		33	2.0
	7.5	2.08	12.0		0.68		36	2.2
FIJ50-32-200A	3.4	0.94	10.6	1450	0.488		20	2.0
	5.7	1.59	10.3		0.516		31	2.0
	6.8	1.89	9.9		0.540		34	2.2
FIJ50-32-250	7.5	2.08	82	2900	7.28		23	2.0
	12.5	3.47	80		8.25		33	2.0
	15.0	4.17	78.5		8.79		36.5	2.5
FIJ50-32-250A	7	1.94	71.9	2900	6.84		20	2.0
	11.7	3.25	70		6.97		32	2.0
	14	3.89	68.8		7.71		34	2.5
FIJ50-32-250B	6.6	1.83	63.6	2900	5.71		20	2.0
FIJ50-32-250B	11.0	3.06	62	2900	6.19		30	2.0
FIJ50-32-250	3.75	1.04	20.5	1450	1.23		17	2.0
	6.3	1.74	20		1.27		27	2.0
	7.5	2.08	6.2		1.29		31	2.2
FIJ50-32-250A	3.51	0.98	18.0	1450	1.12		15.4	2.0
	5.9	1.64	17.5		1.125		25	2.0
	7.02	1.95	17.2		1.18		27.9	2.2
FIJ65-50-125	15	4.17	21.3	2900	1.85		47	2.0
	25	6.94	20		2.2		62	2.0
	30	8.33	18.6		2.4		63	2.5

Model	Q Capacity Q		Head H(m)	Speed(r/min)	Power		Efficiency η(%)	NPSH r (m)
Model	M³/h	L/S	Head H(m)	Speed(r/min)	Shaft Power	Motor Power	Efficiency η(%)	NPSH r (m)
FIJ65-50-125A	13.6	3.78	17.6	2900	1.48	Select according to viscosity and granite of liquid	44	2
	22.7	6.31	16.5		1.67		61	2
	27.3	7.58	15.4		1.91		59.9	2.5
FIJ65-50-125	7.5	2.08	5.4	1450	0.25		44	2
	12.5	3.47	5		0.31		55	2
	15	4.17	4.5		0.33		56	2.2
FIJ65-50-125A	6.8	1.89	4.5	1450	0.23		41	2
	11.3	3.14	4.1		0.234		54	2
	13.6	3.78	3.7		0.258		53	2.2
FIJ65-50-160	15	4.17	34.2	2900	3.18		44	2
	25	6.94	32		3.82		57	2
	30	8.33	30		4.15		59	2.5
FIJ65-50-160A	13.6	3.78	28.4	2900	2.56		41	2
	22.7	6.31	26.5		2.93		56	2
	27.3	7.58	24.8		3.29		56	2.5
FIJ65-50-160	7.5	2.08	8.55	1450	0.45		39	2
	12.5	3.47	8		0.53		51	2
	15	4.17	7.5		0.58		52.5	2.2
FIJ65-50-160A	6.8	1.89	7.09	1450	0.37		35.5	2
	11.3	3.14	6.6		0.41		49.6	2
	13.6	3.78	6.2		0.46		49.9	2.2
FIJ65-40-200	15	4.17	53.2	2900	5.3		41	2
	25	6.94	50		6.55		52	2
	30	8.33	47.6		7.27		53.5	2.5
FIJ65-40-200A	13.6	3.78	43.9	2900	4.28		38	2
	22.7	6.31	41		5.07		50	2
	27.3	7.58	39.3		5.73		51	2.5
FIJ65-40-200	7.5	2.08	13.3	1450	0.78		35	2
	12.5	3.47	12.5		0.93		46	2
	15	4.17	11.9		1.02		47.5	2.2
FIJ65-40-200A	6.8	1.89	11	1450	0.64		31.8	2
	11.3	3.14	10.3		0.72		44	2
	13.6	3.78	9.8		0.81		44.8	2.2
FIJ65-40-250	15	4.17	81.2	2900	9.76		34	2
	25	6.94	80		11.84		46	2
	30	8.33	78.4		12.8		50	2.5
FIJ65-40-250A	14	3.89	71	2900	8.73		31	2
	23.4	6.5	74.8		10.6		45	2
	28	7.78	68.6		11.13		47	2.5
FIJ65-40-250B	13.2	3.67	62.8	2900	7.29		31	2
	22	6.11	61.8		8.42		44	2
	26.4	7.33	53		8.45		45	2.5
FIJ65-40-250	7.5	2.08	20.3	1450	1.48		28	2
	12.5	3.47	20		1.75		39	2
	15	4.17	19.6		1.86		43	2.2
FIJ65-40-250A	7	1.94	17.8	1450	1.35		25	2
	11.7	3.25	17.5		1.47		37.9	2
	14	3.89	17.2		1.64		40	2.2
FIJ65-40-315	15	4.17	126.8	2900	18.5		28	2
	25	6.94	125		21.8		39	2
	30	8.33	124		23.8		42.5	2.5
FIJ65-40-315A	14	3.89	111.2	2900	18.1		25	2
	23.4	6.5	109.5		18.36		38	2
	28	7.78	108.8		22.12		40	2.5
FIJ65-40-315B	13.2	3.67	98	2900	14.69		24	2
	22	6.11	96.5		15.63		37	2
	26.4	7.33	95.9		17.67		39	2.5
FIJ65-40-315	7.5	2.08	32.4	1450	3		22	2
	12.5	3.47	32		3.3		33	2
	15	4.17	31.7		3.5		37	2.2
FIJ65-40-315A	7	1.94	28.4	1450	2.84		19	2
	11.7	3.25	28		2.78		31	2
	14	3.89	27.8		3.12		34	2.2

Model		Capacity Q		Head H(m)	Speed (r/min)	Power		Efficiency η(%)	NPSH r (m)
FIJ80-65-125	30		8.33	23.2	2900	3.16	Select according to viscosity and granite of liquid	60	3
	50		13.9	20		3.95		69	3
	60		16.7	17.6		4.29		67	4
FIJ80-65-125A	27.2		7.56	19.1	2900	2.48		57	3
	45.3		12.58	16.5		3.04		67	3
	54.4		15.12	14.5		3.36		64	4
FIJ80-65-125	15		4.17	5.8	1450	0.44		54	3
	25		6.94	5		0.53		64	3
	30		8.33	4.4		0.58		62	4
FIJ80-65-125A	13.6		3.78	4.8	1450	0.349		51	3
	22.6		6.28	4.1		0.407		62	3
	27.2		7.56	3.6		0.452		59	4
FIJ80-65-160	30		8.33	36	2900	5.16		57	2
	50		13.9	32		6.5		67	2.3
	60		16.7	28.4		7.14		65	3.3
FIJ80-65-160A	27.2		7.56	29.7	2900	4.08		54	2
	45.4		12.6	26.4		5.02		65	2.3
	54.4		15.12	23.4		5.39		62	3.3
FIJ80-65-160	15		4.17	9	1450	0.74		50	2
	25		6.94	8		0.88		62	2.3
	30		8.33	7.2		0.95		62	3.3
FIJ80-65-160A	13.6		3.78	7.4	1450	0.58		47.3	2
	22.7		6.31	6.6		0.68		60	2.3
	27.2		7.56	5.9		0.74		59	3.3
FIJ80-50-200	30		8.33	55.2	2900	8.5		53	2
	50		13.9	50		10.8		63	2.5
	60		16.7	45.2		11.9		62	3.2
FIJ80-50-200A	27.2		7.56	45.4	2900	6.73		50	2
	45.3		12.58	41		8.29		61	2.5
	54.4		15.12	37.2		9.35		59	3.2
FIJ80-50-200	15		4.17	13.5	1450	1.25		44	2
	25		6.94	12.5		1.49		57	2.3
	30		8.33	11.5		1.6		58	3.3
FIJ80-50-200A	13.6		3.78	11.1	1450	1		41	2
	22.7		6.31	10.3		1.135		56.1	2.3
	27.2		7.56	9.5		1.28		55	3.3
FIJ80-50-250	30		8.33	84	2900	16		43	2.5
	50		13.9	80		20.6		53	2.5
	60		16.7	75		12.7		54	2.5
FIJ80-50-250A	28.14		7.82	73.55	2900	13.2		42.7	2.5
	46.9		13.03	70.5		16.1		56	2.5
	56.28		15.63	67.4		17.8		58.03	3
FIJ80-50-250B	26.4		7.33	64.8	2900	11.4		40.86	2.5
	44		12.22	62.2		13.8		54	2.5
	52.8		14.67	60		15		57.52	3
FIJ80-50-250	15		4.17	21	1450	2.15		40	2.5
	25		6.94	20		2.72		50	2.5
	30		8.33	18.8		3.01		51	2.5
FIJ80-50-250A	14.04		3.9	18.2	1450	1.66		42	2.5
	23.4		6.5	17.6		2.25		50	2.5
	28.08		7.8	16.7		2.63		48.5	2.5
FIJ80-50-315	30		8.33	128	2900	33.1		38	2.5
	50		13.9	125		34.1		50	2.5
	60		16.7	123		38		53	3
FIJ80-50-315A	28.14		7.82	113.4	2900	21.5		40.4	2
	46.9		13.03	110		28.1		50	2
	56.28		15.63	107.7		30		55	2.5
FIJ80-50-315B	26.4		7.33	100.5	2900	17		43.5	2
	44		12.22	97		24.2		48	2
	52.8		14.67	95		25		54.6	2.5
FIJ80-50-315	15		4.17	32.5	1450	3.59		37	2.5
	25		6.94	32		4.54		48	2.5
	30		8.33	31.5		4.95		52	3

Model	Capacity Q		Head H(m)	Speed (r/min)		Power		Efficiency η(%)	NPSH r (m)
FIJ80-50-315A	14.1	3.92	29.2	1450	3.52		Select according to viscosity and granite of liquid	31.8	2.5
	23.5	6.53	28.3		4.12			44	2.5
	28.2	7.83	27.1		4.41			47.2	3
FIJ100-80-125	60	16.7	23.7	2900	5.96			65	3
	100	27.8	20		7.47			73	4.2
	120	33.3	16.3		7.72			69	4.8
FIJ100-80-125A	55	15.3	19.4	2900	4.68			62	3
	91.8	25.5	16.8		5.9			71	4.2
	109	30.5	13.7		6.12			67	4.8
FIJ100-80-160	60	16.7	37	2900	10.1			60	3.8
	100	27.8	32		11.9			73	4.3
	120	33.3	28		12.5			73	5
FIJ100-80-160A	54.6	15.17	30.6	2900	7.98			57	3.8
	91	25.28	26.5		9.25			71	4.3
	109.2	30.34	23.2		9.85			70.4	5
FIJ100-80-160	30	8.33	9.25	1450	1.3			58	3.8
	50	13.9	8		1.58			69	4.3
	60	16.7	7		1.68			68	5
FIJ100-80-160A	27.3	7.58	7.66	1450	1.03			55.3	3.8
	45.5	12.64	6.6		1.22			67	4.3
	54.6	15.16	5.8		1.32			65.3	5
FIJ100-65-200	60	16.7	56	2900	14.5			63	3.4
	100	27.8	50		18.9			72	3.9
	120	23.3	44		20.3			71	5.2
FIJ100-65-200A	54.6	15.17	46.5	2900	11.5			60.1	3.4
	91	25.28	41.5		14.7			70	3.9
	109.2	30.34	36.6		16			68	5.2
FIJ100-65-200	30	8.33	14	1450	1.91			60	3.4
	50	13.9	12.5		2.5			68	3.9
	60	16.7	11		2.85			63	5.3
FIJ100-65-200A	27.3	7.58	11.6	1450	1.51			57	3.4
	45.5	12.64	10.3		1.83			66	3.9
	54.6	15.16	9.1		2.25			60.1	5.2
FIJ100-65-250	60	16.7	88	2900	25.2			57	3
	100	27.8	80		32			68	3.6
	120	33.3	74		36.1			67	4.5
FIJ100-65-250A	56.11	15.58	77	2900	21.8			54	3
	93.5	25.97	70		27.4			65	3.6
	112.2	31.16	64.7		30.9			64	4.5
FIJ100-65-250B	52.7	14.64	67.9	2900	18.3			53.3	3
	87.8	24.39	61.7		23.1			64	3.6
	105.4	29.28	57		26			62.9	4.5
FIJ100-65-250	30	8.33	22	1450	3.6			50	3
	50	13.9	20		4.3			63	3.6
	60	16.7	18.5		4.7			64	4.5
FIJ100-65-250A	28	7.79	19.2	1450	3.12			47	3
	45.5	12.64	17.4		3.53			61	3.6
	56	15.58	16.2		4.06			60.9	4.5
FIJ100-65-315	60	16.7	132	2900	44.9			48	2.8
	100	27.8	125		54.9			62	3.2
	120	33.8	119		60.8			64	4.2
FIJ100-65-315A	56.1	15.58	115.5	2900	39.2			45	2.8
	93.5	25.97	109		45.5			61	3.2
	112.2	31.16	104		52.1			61	4.2
FIJ100-65-315B	52.7	14.64	102	2900	33.3			44	2.8
	88	24.44	97		38.7			60	3.2
	105.4	29.28	92		44			60	4.2
FIJ100-65-315	30	8.33	33.5	1450	6.2			44	2.8
	50	13.9	32		7.5			58	3.2
	60	16.7	30.5		8.3			60	4.2
FIJ100-65-315A	28	7.79	29.3	1450	5.46			41	2.8
	46.5	12.92	28		6.33			56	3.2
	56	15.58	26.7		7.15			57	4.2

Model	Capacity Q		Head H(m)	Speed (r/min)	Power		Efficiency η(%)	NPSH r (m)
FIJ125-80-160				2900		Select according to viscosity and granite of liquid
	160	44.4	32		17.7		79	5.3

FIJ125-80-200				2900
	160	44.4	50		28.3		77	4.3

FIJ125-80-200				2900
	160	44.4	80		47.1		74	4

FIJ125-100-200	120	33.3	61	2900	29.3		68	4.5
	200	55.6	50		35.4		77	5
	240	66.7	41		38.3		70	5.8
FIJ125-100-200A	109.1	30.3	50.5	2900	23.1		64.9	4.5
	182	50.56	41.4		27.4		75	5
	218.2	60.6	34		30.1		67.1	5.8
FIJ125-100-200	60	16.7	15.25	1450	3.89		64	4.5
	100	27.8	12.5		4.66		73	5
	120	33.3	10.25		5.08		66	5.8
FIJ125-100-200A	54.7	15.2	12.6	1450	3.08		61	4.5
	91	25.28	10.3		3.6		71	5
	109.4	30.4	8.5		4.02		63	5.8
FIJ125-100-250	120	33.3	90	2900	47.4		62	3.7
	200	55.6	80		58.1		75	4.5
	240	66.7	73		64.5		74	5.5
FIJ125-100-250A	112	31.1	78	2900	40.3		59	3.7
	186.5	51.8	69.5		48.35		73	4.5
	224	62.2	63.5		54.5		71	5.5
FIJ125-100-250B	105.5	29.3	69	2900	34.2		58	3.7
	175.5	48.75	61.5		41.4		71	4.5
	211	58.6	56		46		69.9	5.5
FIJ125-100-250	60	16.7	22.5	1450	6.23		59	3.7
	100	27.8	20		7.56		72	4.5
	120	33.3	18.25		8.4		71	5.5
FIJ125-100-250A	56	15.56	19.5	1450	5.31		56	3.7
	93	25.83	17.4		6.29		70	4.5
	112	31.1	15.9		7.13		68	5.5
FIJ125-100-315	120	33.3	132.5	2900	65.3		52.6	4
	200	55.6	125		94.6		72	4.5
	240	66.7	120		103		75	5
FIJ125-100-315A	60	16.7	33.5	1450	10.3		53	4
	100	27.8	32		13.5		65	4.5
	120	33.3	30.5		15.1		66	5
FIJ125-100-400	60	16.7	52	1450	17.7		48	3.5
	100	27.8	50		24.8		55	3.5
	120	33.3	48.5		25.8		62	4
FIJ125-100-400A	54.6	15.17	46	1450	13		44	3.5
	91	25.28	41		19		51	3.5
	109.2	30.34	36.6		19.6		58	4
FIJ125-125-250	120	33.3	24.8	1450	12.3		66	2.5
	200	55.6	20		14.1		77	2.8
	240	66.7	15		14.4		68	3.5
FIJ125-125-250A	109.1	30.3	20.5	1450	9.7		62.8	2.5
	182	50.56	16.5		10.9		75	2.8
	218.2	60.6	12.4		11.3		65.2	3.5
FIJ125-125-315	120	33.3	36.3	1450	18.8		63	2.5
	200	55.6	32		23.2		75	2.8
	240	66.7	28.5		25.9		72	3.8
FIJ125-125-315A	109.1	30.3	30	1450	14.85		60	2.5
	182	50.56	25.5		17.32		73	2.8
	218.2	60.6	23.5		20.23		69	3.8
FIJ125-125-400	120	33.3	57.5	1450	30.8		61	2
	200	55.6	50		38.9		70	2.5
	240	66.7	44		45.6		63	3

Model	Capacity Q		Head H(m)	Speed (r/min)	Power		Efficiency η(%)	NPSH r (m)
FIJ125-125-400A	109.1	30.3	47.5	1450	24.3	Select according to viscosity and granite of liquid	58	2
	182	50.56	41		29.9		68	2.5
	218.2	60.6	36.5		36.1		60	3
FIJ200-150-250	240	66.7	23	1450	23.3			2.5
	400	111.1	20		29.4		74	2.8
	460	127.8	18		30.6			3
FIJ200-150-315	240	66.7	35.6	1450	34.7		67	3
	400	111.1	32		44.1		79	3.5
	460	127.8	29.4		47.8		77	4
FIJ200-150-315A	218.2	60.6	29.4	1450	27.3		64	3
	363	100.8	25.5		32.7		77	3.5
	418	116.1	24.3		37.4		74	4
FIJ200-150-400	240	66.7	55.8	1450	54.4		67	3
	400	111.1	50		69.8		78	3.5
	460	127.8	47		78.5		75	4
FIJ200-150-400A	218.2	60.6	46	1450	42.7		64	3
	363	100.8	41		53.3		76	3.5
	418	116.1	38.8		61.3		72	4
FIJ250-200-250A	600		12	1450
FIJ250-200-250B	540		11	1450
FIJ250-200-315A	650		24	1450
FIJ250-200-315B	600		20	1450
FIJ250-200-315C	550		16	1450
FIJ250-200-400A	650		52	1450
FIJ250-200-400B	550		45	1450
FIJ250-200-400C	500		40	1450
FIJ250-200-500A	700		75	1450
FIJ250-200-500B	650		65	1450
FIJ250-200-500C	550		55	1450
FIJ300-250-315A	950		22	1450
FIJ300-250-315B	900		20	1450
FIJ300-250-315C	800		16	1450
FIJ300-250-400A	1000		44	1450
FIJ300-250-400B	900		38	1450
FIJ300-250-400C	850		30	1450
FIJ300-250-500A	1200		80	1450
FIJ300-250-500B	1100		70	1450
FIJ300-250-500C	1000		55	1450

Model	impeller type	n=2900r/min speed
		M³/h Capacity	H m Head
				relative density<1.0		relative density<1.35		relative density<1.86
				motor power or model
				Kw		Kw		Kw
FIJ32-20-125		3.2	20	1.1	YB802-2/1.1	1.5	YB802-2/1.1	1.5	YB90S-2/1.5
FIJ32-20-160		3.2	32	1.5	YB90S-2/1.5	3	YB90L-2/2.2	3	YB100L-2/3.0
FIJ32-20-200		3.2	50	3	YB100L-2/3.0	5.5	YB112M-2/4.0	5.5	YB132S1-2/5.5
FIJ32-20-250		3.2	80	5.5	YB132S1-2/5.5	11	YB132S2-2/7.5	11	YB160M1-2/11
FIJ40-25-160		6.3	20	1.5	YB90S-2/1.5	3	YB90L-2/2.2	3	YB100L-2/3.0
FIJ40-25-160		6.3	32	2.2	YB90L-2/2.2	4	YB100L-2/3.0	4	YB112M-2/4.0
FIJ40-25-200		6.3	50	4	YB112M-2/4.0	7.5	YB132S1-2/5.5	7.5	YB132S2-2/7.5
FIJ40-25-250		6.3	80	7.5	YB132S2-2/7.5	15	YB160M1-2/11	15	YB160M2-2/15
FIJ50-32-125		12.5	20	1.5	YB90S-2/1.5	3	YB90L-2/2.2	3	YB100L-2/3.0
FIJ50-32-125A		11.3	16.4	1.5	YB90S-2/1.5	3	YB90L-2/2.2	3	YB100L-2/3.0
FIJ50-32-160		12.5	32	3	YB100L-2/3.0	5.5	YB112M-2/4.0	5.5	YB132S1-2/5.5
FIJ50-32-160A		11.3	26.4	2.2	YB90L-2/2.2	4	YB100L-2/4.0	4	YB112M-2/4.0
FIJ50-32-200		12.5	50	5.5	YB132S1-2/5.5	11	YB132S2-2/7.5	11	YB160M1-2/11
FIJ50-32-200A		11.3	41	4	YB112M-2/4.0	7.5	YB132S1-2/5.5	7.5	YB132S2-2/7.5
FIJ50-32-250		12.5	80	11	YB160M1-2/11	18.5	YS160M2-2/15	18.5	YB160L-2/18.5
FIJ50-32-250A		11.7	70	7.5	YB132S2-2/7.5	15	YB160M1-2/11	15	YB160M2-2/15
FIJ50-32-250B		11	62	7.5	YB132S2-2/7.5	15	YB160M1-2/11	15	YB160M2-2/15
FIJ65-50-125		25	20	3	YB100L-2/3.0	5.5	YB112M-2/4.0	5.5	YB132S1-2/5.5
FIJ65-50-125A		22.7	16.5	2.2	YB90L-2/2.2	4	YB100L-2/3.0	4	YB112M-2/4.0
FIJ65-50-160		25	32	5.5	YB132S1-2/5.5	7.5	YB132S1-2/5.5	7.5	YB132S2-2/7.5
FIJ65-50-160A		22.7	26.5	4	YB112M-2/4.0	5.5	YB112M-2/4.0	5.5	YB132S1-2/5.5
FIJ65-40-200		25	50	7.5	YB132S2-2/7.5	11	YB160M1-2/11	15	YS160M2-2/15
FIJ65-40-200A		22.7	41	5.5	YB132S1-2/5.5	7.5	YB132S2-2/7.5	11	YB160M1-2/11
FIJ65-40-250		25	80	15	YS160M2-2/15	18.5	YB160L-2/18.5	22	YB180M-2/22
FIJ65-40-250A		23.4	74.8	11	YB160M1-2/11	15	YS160M2-2/15	22	YB180M-2/22
FIJ65-40-250B		22	61.8	11	YB160M1-2/11	15	YS160M2-2/15	18.5	YB160L-2/18.5
FIJ65-40-315		25	125	30	YB200L1-2/30	30	YB200L1-2/30	45	YB225M-2/45
FIJ65-40-315A		23.4	109.5	22	YB180M-2/22	30	YB200L1-2/30	37	YB200L2-2/37
FIJ65-40-315B		22	96.5	18.5	YB160L-2/18.5	22	YB180M-2/22	30	YB200L1-2/30
FIJ80-65-125		50	20	4	YB112M-2/4.0	5.5	YB132S1-2/5.5	7.5	YB132S2-2/7.5
FIJ80-65-125A		45.3	16.5	4	YB112M-2/4.0	5.5	YB132S1-2/5.5	7.5	YB132S2-2/7.5
FIJ80-65-160		50	32	7.5	YB132S2-2/7.5	11	YB160M1-2/11	15	YS160M2-2/15
FIJ80-65-160A		45.4	26.4	5.5	YB132S1-2/5.5	7.5	YB132S1-2/5.5	11	YB160M1-2/11
FIJ80-50-200		50	50	11	YB160M1-2/11	15	YS160M2-2/15	22	YB180M-2/22
FIJ80-50-200A		45.3	41	11	YB160M1-2/11	15	YS160M2-2/15	18.5	YB160L-2/18.5
FIJ80-50-250		50	80	22	YB180M-2/22	30	YB200L1-2/30	45	YB225M-2/45
FIJ80-50-250A		46.9	70.5	18.5	YB160L-2/18.5	22	YB180M-2/22	30	YB200L1-2/30
FIJ80-50-250B		44	62.2	15	YB160M2-2/15	22		30
FIJ80-50-315		50	125	37	YB200L2-2/37	55	YB250M-2/55	75	YB280S-2/75
FIJ80-50-315A		46.9	110	30	YB200L1-2/30	45	YB225M-2/45	55	YB250M-2/55
FIJ80-50-315B		44	9.7	30	YB200L1-2/30	37	YB200L2-2/37	45	YB225M-2/45
FIJ100-80-125		100	20	11	YB160M1-2/11	11	YB160M1-2/11	15	YB160M2-2/15
FIJ100-80-125A		91.8	16.8	7.5	YB132S2-2/7.5	11	YB160M1-2/11	11	YB160M1-2/11
FIJ100-80-160		100	32	15	YB160M2-2/15	18.5	YB160L-2/18.5	22	YB180M-2/22
FIJ100-80-160A		91	26.5	11	YB160M1-2/11	15	YB160M2-2/15	18.5	YB160L-2/18.5
FIJ100-65-200		100	50	22	YB180M-2/22	30	YB200L1-2/30	37	YB200L2-2/37
FIJ100-65-200A		91	41.5	18.5	YB160L-2/18.5	22	YB180M-2/22	30	YB200L1-2/30

Model	n=1450r/min speed
	M³/h Capacity	H m Head
			relative density<1.0		relative density<1.35		relative density<1.86

			Kw		Kw		Kw
FIJ32-20-125
FIJ32-20-160
FIJ32-20-200
FIJ32-20-250
FIJ40-25-160
FIJ40-25-160
FIJ40-25-200
FIJ40-25-250
FIJ50-32-125	6.3	5	0.55	YB801-4/0.55	0.55	YB801-4/0.55	0.55	YB801-4/0.55
FIJ50-32-125A	5.7	4.1					0.55	YB801-4/0.55
FIJ50-32-160	6.3	8					0.75	YB802-4/0.75
FIJ50-32-160A	5.7	6.6					0.75	YB802-4/0.75
FIJ50-32-200	6.3	12.5	0.75	YB802-4/0.75	1.1	YB90S-4/1.1	1.5	YB90L-4/1.5
FIJ50-32-200A	5.7	10.3	0.75	YB802-4/0.75	0.75	YB802-4/0.75	1.1	YB90S-4/1.1
FIJ50-32-250	6.3	20	1.5	YB90L-4/1.5	2.2	YB100L-4/2.2	3	YB100L2-4/3.0
FIJ50-32-250A	5.9	17.5					2.2	YB100L1-4/2.2
FIJ50-32-250B							2.2	YB100L1-4/2.2
FIJ65-50-125	12.5	8	0.55	YB801-4/0.55	0.55	YB801-4/0.55	1.1	YB90S-4/1.1
FIJ65-50-125A	11.3	4.1	0.55		0.55	YB801-4/0.55	0.55	YB801-4/0.55
FIJ65-50-160	12.5	8			0.75	YB802-4/0.75	1.1	YB90S-4/1.1
FIJ65-50-160A	11.3	6.6	0.55		0.75		1.1	YB90S-4/1.1
FIJ65-40-200	12.5	12.5	1.1	YB90S-4/1.1	1.5	YB90L-4/1.5	2.2	YB100L1-4/2.2
FIJ65-40-200A	11.3	10.3	0.75	YB802-4/0.75	1.1	YB90S-4/1.1	1.5	YB90L-4/1.5
FIJ65-40-250	12.5	20	2.2	YB100L1-4/2.2	3	YB100L2-4/3.0	4	YB112M-4/4.0
FIJ65-40-250A	11.7	17.5	1.5	YB90L-4/1.5	2.2	YB100L1-4/2.2	3	YB100L2-4/3.0
FIJ65-40-250B			4	YB112M-4/4.0	5.5	YB132S-4/5.5	7.5	YB132M-4/7.5
FIJ65-40-315	12.5	32	4	YB112M-4/4.0	5.5	YB132S-4/5.5	7.5	YB132M-4/7.5
FIJ65-40-315A	11.7	28	3	YB100L2-4/3.0	4	YB112M-4/4.0	5.5	YB132S-4/5.5
FIJ65-40-315B			3	YB100L2-4/3.0	4	YB112M-4/4.0	5.5	YB132S-4/5.5
FIJ80-65-125	25	5	0.75	YB802-4/0.75	0.75	YB802-4/0.75	1.1	YB90S-4/1.1
FIJ80-65-125A	22.6	4.1	0.55	YB801-4/0.55	0.55	YB801-4/0.55	0.75	YB802-4/0.75
FIJ80-65-160	25	8	1.1	YB90S-4/1.1	1.5	YB90L-4/1.5	2.2	YB100L1-4/2.2
FIJ80-65-160A	22.7	6.6	0.75	YB802-4/0.75	1.1	YB90S-4/1.1	1.5	YB90L-4/1.5
FIJ80-50-200	25	12.5	1.5	YB90L-4/1.5	2.2	YB100L1-4/2.2	3	YB100L2-4/3.0
FIJ80-50-200A	22.7	10.3	1.5	YB90L-4/1.5	2.2	YB100L1-4/2.2	2.2	YB100L1-4/2.2
FIJ80-50-250	25	20	3		4		5.5
FIJ80-50-250A	23.4	17.6	3	YB100L2-4/3.0	4	YB112M-4/4.0	5.5	YB132S-4/5.5
FIJ80-50-250B			5.5	YB132S-4/5.5	7.5	YB132M-4/7.5	11	YB160M-4/11
FIJ80-50-315	25	32	5.5	YB132S-4/5.5	7.5	YB132M-4/7.5	11	YB160M-4/11
FIJ80-50-315A	23.5	28.3	5.5
FIJ80-50-315B
FIJ100-80-125			2.2	YB100L1-4/2.2	2.2	YB100L1-4/2.2	3	YB100L2-4/3.0
FIJ100-80-125A
FIJ100-80-160	50	8
FIJ100-80-160A	45.5	6.6	1.5	YB90L-4/1.5
FIJ100-65-200	50	12.5	3	YB100L2-4/3.0	4	YB112M-4/4.0	5.5	YB132S-4/5.5
FIJ100-65-200A	45.5	10.3	2.2	YB100L1-4/2.2	3	YB100L2-4/3.0	4	YB112M-4/4.0
FIJ100-65-250	50	20	5.5	YB132S-4/5.5	7.5	YB132M-4/7.5	1.1	YB160M-4/11
FIJ100-65-250A	45.5	17.4	4	YB112M-4/4.0	5.5	YB132S-4/5.5	7.5	YB132M-4/7.5

Model	impeller type	n=2900r/min speed
		M³/h Capacity	H m Head	relative density<1.0		relative density<1.35			relative density<1.86
				motor power or model
				Kw	-		Kw	-		Kw	-
FIJ100-65-250	-	100	80	37	YB200L2-2/37		45	YB225M-2/45		75	YB280S-2/75
FIJ100-65-250A	-	93.5	70	30	YB200L2-2/30		37	YB200L2-2/37		55	YB250M-2/55
FIJ100-65-250B	-	87.8	61.7	30	YB200L2-2/30		37	YB200L2-2/37		45	YB225M-2/45
FIJ100-65-315	-	100	125	75	YB280S-2/75		75	YB280S-2/75		110	YB135S-2/110
FIJ100-65-315A	-	93.5	109	55	YB250M-2/55		-			-	-
FIJ100-65-315B	-	88	97	45	YB225M-2/55		55	YB250M-2/55		75	YB280S-2/75
FIJ125-80-160	-	160	32	22	YB180M-2/22		30	YB200L1-2/30		37	YB200L2-2/37
FIJ125-80-200	-	160	50	37	YB200L2-2/37		45	YB225M-2/45		55	YB250M-2/55
FIJ125-80-250	-	160	80	55	YB250M-2/55		75	YB280S-2/75		90	YB280M-2/90
FIJ125-100-200	-	200	50	45	YB225M-2/45		55	YB250M-2/55		75	YB280S-2/75
FIJ125-100-200A	-	182	41.4	30	YB200L1-2/30		37	YB200L2-2/37		55	YB250M-2/55
FIJ125-100-250	-	200	80	75	YB280S-2/75		90	YB280M-2/90		110	-
FIJ125-100-250A	-	186.5	69.5	55	YB250M-2/55		75	YB280S-2/75		90	YB280M-2/90
FIJ125-100-250B	-	175.5	61.5	45	YB225M-2/45		75	YB280S-2/75		90	YB280M-2/90
FIJ125-100-315	-	200	125	110	YB315S-2/110		132	YB315M1-2/132		-	-

Model	impeller type	n=2900r/min speed
		M³/h Capacity	H m Head	relative density<1.0		relative density<1.35			relative density<1.86
				motor power or model
				Kw			Kw		Kw
FIJ100-65-315		50	32	7.5	YB132M-4/7.5		11	YB160M-4/11	15	YB160L-4/15
FIJ100-65-315A		46.5	28	7.5	YB132M-4/7.5		11	YB160M-4/11	15	YB160L-4/15
FIJ100-65-315B				5.5	YB132S-4/5.5		7.5	YB132M-4/7.5	11	YB160M-4/11
FIJ125-100-200		100	12.5	5.5	YB132S-4/5.5		7.5	YB132M-4/7.5	11	YB160M-4/11
FIJ125-100-200A		91	10.3	4	YB112M-4/4.0		5.5	YB132S-4/5.5	7.5	YB132M-4/7.5
FIJ125-100-250		100	20	11	YB160M-4/11		11	YB160M-4/11	15	YB160L-4/15
FIJ125-100-250A		93	17.4	7.5	YB132M-4/7.5		11	YB160M-4/11	15	YB160L-4/15
FIJ125-100-250B				18.5	YB180L-4/18.5		22	YB180L-4/22	30	YB200L-4/30
FIJ125-100-315		100	32	15	YB160L-4/15		22	YB180L-4/22	30	YB200L4/30
FIJ125-100-400		100	50	32	YB200L-4/30		37	YB225S-4/37	55	YB250M-4/55
FIJ150-125-250		200	20	18.5	YB180L-4/18.5		22	YB180L-4/22	30	YB200L-4/30
FIJ150-125-250A		182	16.5	15	YB160L-4/15		15	YB160L-4/15	22	YB180L-4/22
FIJ150-125-315		200	32	30	YB200L-4/30		37	YB225S-4/37	45	YB225M-4/45
FIJ150-125-315A		182	25.5	22	YB180L-4/22		30	YB220L-4/30	37	YB225S-4/37
FIJ150-125-400		200	50	45	YB225M-4/45		55	YB250M-4/55	75	YB280S-4/75
FIJ150-125-400A		182	41	37	YB225S-4/37		45	YB225M-4/45	75	YB280S-4/75
FIJ200-150-250		400	20	37	YB225S-4/37		45	YB225M-4/45	75	YB280M-4/90
FIJ200-150-250A		360	16.2	30	YB200L-4/30		30	YB200L-4/30	45	YB225M-4/45
FIJ200-150-315		400	32	45	YB225M-4/45		75	YB280S-4/75	90	YB280S-4/75
FIJ200-150-315A		363	25.5	37	YB225S-4/37		45	YB225M-4/45	75	YB280S-4/75
FIJ200-150-400		400	50	75	YB280S-4/75		110	YB315S-4/110	132	YB315M1-4/132
FIJ200-150-400A		363	41	55	YB225M-4/45		75	YB280S-4/75	110	YB315S-4/110

Fij Series Chemical Centrifugal Pump Related Products

Next:Fluorin Plastic Enhanced Alloy Pump

Catalog:Chemical Pumps

Above:Corrosive-Resistant Pumps

欧美日韩亚洲国产精品,成全视频免费高清,国产免费一区二区在线A片视频,17C最新网名2022FUN

Fij Series Chemical Centrifugal Pump
