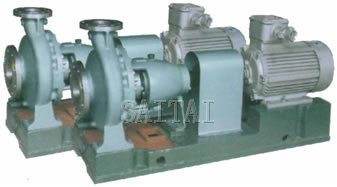

Standard Chemical Pump

I Summary For Standard Chemical Pump

The standard chemical pump of Model-CZ series is a horizontal, single Cstage, and single- suction centrifugal pump its size and property conform to the DIN24256/ISO2858 standard.CZ standard chemical pump of Model-Z series have all those properties of the standard chemical pump of Model-IH series, its efficiency and cavitations property are be titer, and it is alternative with the latter. Usage it is used for transmission of low or high temperature liquids, neutral or corrosive liquids, clean or solid-granular-containing liquids.
It is especially suitable for: Chemical and petrochemical industries Oil refinery plants Paper mills and paper pulp industries. Coating industry(processes of degreasing, phosphatization, electrophoresis, etc.)

II Performance For Standard Chemical Pump

Capacity(Q) (subject to the operation speed, refer to the diagram of properties in page 2) 2000m³/h	Head(H) 160m
Operation pressure(P) 2.5MPa	Operation temperature(t)-80℃~+300℃
Its characteristics survey is even, its value of cavitations is low, and it has high efficiency and maintains these properties even if not fully loaded.

III Property Parameters Table For Standard Chemical Pump

Model	Impeller type	speed n=2900r/min
		Capacity Q M³/h	Head H m	NPSH m	Efficency %	Density=1		Density=1.35			Density=1.84
						motor power or model
						kw			kw			kw
CZ32-160	A	20	36	3.1	62	4	Y112M-2		5.5	Y132S1-2		7.5	Y132S2-2
	B	18	32			4	Y112M-2		5.5	Y132S1-2		7.5	Y132S2-2
	C	17	28			3	Y100L-2		4	Y112M-2		5.5	Y132S1-2
	D	15	20			2.2	Y90L-2		3	Y100L-2		4	Y112M-2
	E	13	14
CZ32-200	A	20	50	2.7	51	7.5	Y132S2-2		11	Y160M1-2		15	Y160M2-2
	B	18	48									11	Y160M1-2
	C	16	40			5.5	Y132S1-2		7.5	Y132S2-2
	D	15	30			4	Y112M-2		5.5	Y132S1-2		7.5	Y132S2-2
CZ32-250	A	20	85	2.1	40	15	Y160M2-2		18.5	Y160L-2		30	Y200L1-2
	B	20	75
	C	18	65			11	Y160M1-2		15	Y160M2-2		18.5	Y160L-2
	D	15	50			7.5	Y132S2-2		11	Y160M1-2		15	Y160M2-2
CZ40-160	A	30	34	1.5	63	7.5	Y132S2-2		11	Y160M1-2		15	Y160M2-2
	B	28	30			5.5	Y132S1-2		7.5	Y132S2-2		11	Y160M1-2
	C	16	26						5.5	Y132S1-2		7.5	Y132S2-2
	D	14	18			3	Y100L-2					5.5	Y132S1-2
CZ40-200	A	34	50	2.4	60	11	Y160M1-2		15	Y160M2-2		18.5	Y160L-2
	B	30	48			7.5	Y132S2-2		11	Y160M1-2		15	Y160M2-2
	C	26	38			5.5	Y132S1-2		7.5	Y132S2-2		11	Y160M1-2
	D	22	30
1
CZ40-250	A	36	85	6	50	22	Y180M-2		30	Y200L1-2		45	Y225M-2
	B	34	80			18.5	Y160L-2		22	Y180M-2		37	Y200L2-2
	C	30	65			15	Y160M2-2		18.5	Y160L-2		30	Y200L1-2
	D	26	50			11	Y160M1-2		15	Y160M2-2		18.5	Y160L-2
CZ40-315	A	46	140	4	50	45	Y225M-2		55	Y250M-2		75	Y280S-2
	B	44	130			37	Y200L2-2		45	Y225M-2		75	Y280S-4
	C	40	100			30	Y200L1-2		37	Y200L2-2		55	Y250M-2
	D	34	80						30	Y200L1-2		37	Y200L2-2
CZ50-160	A	55	34	2.9	73	11	Y160M1-2		11	Y160M1-2		15	Y160L2-2
	B	50	30			7.5	Y132S2-2
	C	46	26			5.5	Y132S1-2		7.5	Y132S2-2		11	Y160M1-2
	D	40	18						5.5	Y132S1-2		7.5	Y132S2-2
CZ50-200	A	65	56	4	72	18.5	Y160L-2		22	Y180M-2		45	Y225S-2
	B	65	50			15	Y160M2-2		18.5	Y160L-2		37	Y200L2-2
	C	50	40			11	Y160M1-2		15	Y160M2-2		18.5	Y160L-2
	D	40	32			7.5	Y132S2-2		11	Y160M1-2		15	Y160M2-2
CZ50-250	A	65	85	3	64	30	Y200L1-2		37	Y200L2-2		45	Y225M-2
	B	60	80									45	Y225M-2
	C	55	65			22	Y160M-2		30	Y200L1-2		37	Y200L2-2
	D	45	50			15	Y160M2-2		15	Y160M2-2		22	Y180M-2
CZ50-315	A	80	140	5	60	75	Y280S-2		90	Y280M-2		110	Y315S-2
	B	75	135			55	Y250M-2		75	Y280S-2		110	Y315S-2
	C	70	110			45	Y225M-2					90	Y280M-2
	D	65	85			37	Y200L2-2		45	Y225M-2		75	Y280S-2

Model	Impeller type	speed n=2900r/min
		Capacity Q M³/h	Head H m	NPSH m	Efficency %	Density=1		Density=1.35			Density=1.84
						motor power or model
						kw			kw			kw
CZ65-160	A	100	32	3	74	15	Y160M2-2		18.5	Y160L-2		30	Y200L1-2
	B	90	32									22	Y180M-2
	C	90	24			11	Y160M1-2		15	Y160M2-2		18.5	Y160L-2
	D	80	14			5.5	Y132S1-2		7.5	Y132S2-2		11	Y160M1-2
	A	100	54	3.2	73	22	Y180M2-2		30	Y200L1-2		37	Y200L2-2
	B	90	50
	C	90	40			18.5	Y160L-2		22	Y180M-2		30	Y200L1-2
	D	70	30			11	Y160M1-2		15	Y160M2-2		18.5	Y160L-2
CZ65-250	A	115	85	3.4	71	45	Y225M-2		55	Y250M-2
	B	115	75
	C	100	65			37	Y200L2-2		45	Y225M-2		55	Y250M-2
	D	80	50			30	Y200L1-2		30	Y200L1-2		37	Y200L2-2
CZ65-315	A	135	135	5.5	66	90	Y280M-2		110	Y315S-2		160	Y315M2-2
	B	130	125
	C	115	115			75	Y280S-2		90	Y280M-2		132	Y315M1-2
	D	110	110			55	Y250M-2		75	Y280S-2		110	Y315S-2
	E	90	85			45	Y225M-2		55	Y250M-2		75	Y280S-2
	F	75	70			30	Y200L1-2		45	Y225M-2		55	Y250M-2
CZ80-160	A	170	30	4.2	76	22	Y180M-2		30	Y200L1-2		37	Y200L2-2
	B	160	26			18.5	Y160L-2		22	Y180M-2
	C	150	22			15	Y160M2-2		18.5	Y160L-2		30	Y200L1-2
	D	130	16			11	Y160M1-2		15	Y160M2-2		18.5	Y160L-2
CZ80-200	A	150	50	3.8	79	37	Y200L2-2		45	Y225M-2		55	Y250M-2
	B	140	46			30	Y200L1-2		37	Y200L2-2		55	Y250M-2
	C	130	38			22	Y180M-2		30	Y200L1-2		37	Y200L2-2
	D	110	26			15	Y160M2-2		18.5	Y160L-2		30	Y200L1-2
CZ80-250	A	190	80	5	80	75	Y280S-2		90	Y280M-2		110	Y315S-2
	B	180	75			55	Y250M-2		75	Y280S-2		110	Y315S-2
	C	170	70			45	Y225M-2		75	Y280S-2		90	Y280M-2
	D	150	55			37	Y200L2-2		55	Y250M-2		75	Y280S-2
	E	130	47			30	Y200L1-2		37	Y200L2-2		55	Y250M-2
CZ80-315	A	200	130	5.5	76.5	110	Y315S2-2		160	Y315M2-2
	B	180	125						132	Y315M1-2
	C	160	100			75	Y280S-2		90	Y280M-2		132	Y315M1-2
	D	150	75			55	Y250M-2		75	Y280S-2		90	Y280M-2
CZ100-200	A	220	45	4	81	45	Y225M-2		55	Y250M-2		75	Y280S-2
	B	200	40			30	Y200L2-2		45	Y225M-2		55	Y250M-2
	C	180	30			22	Y180M-2		30	Y200L1-2		45	Y225M-2
	D	150	25									37	Y200L1-2
CZ100-250	A	280	75	4.9	81.5	90	Y280M-2		110	Y315S-2		160	Y315M2-2
	B	250	70			75	Y280S-2					132	Y315M1-2
	C	230	55			55	Y250M-2		75	Y280S-2		110	Y315S-2
	D	200	40			37	Y200L2-2		55	Y250M-2		75	Y280S-2
CZ100-315	A	270	135	5.5	75.5	160	Y315M2-2
	B	250	130			132	Y315M1-2
	C	230	100			110	Y315S-2		132	Y315M1-2
	D	200	85			75	Y280S-2		110	Y315S-2		132	Y315M1-2

Model	Impeller type	speed n=14500r/min
		Capacity Q M³/h	Head H m	NPSH m	Efficency %	Density=1		Density=1.35		Density=1.35
						motor power or model
						kw		kw		kw
CZ32-160	A	11	9	1.5	49	1.1	Y90S-4	1.1	Y90S-4	1.5	Y90L-4
	B	10	8
	C	9	7							1.1	Y90S-4
	D	6	5
	E	6	3
CZ32-200	A	10	13	1	47	1.5	Y90L-4	1.5	Y90L-4	2.2	Y100L1-4
	B	9	12							1.5	Y90L-4
	C	8	10
	D	8	8
CZ32-250	A	11	20	0.9	37	2.2	Y100L1-4	3	Y100L2-4	4	Y112M-4
	B	10	19
	C	9	15					2.2	Y100L1-4	3	Y100L2-4
	D	8	11							2.2	Y100L1-4
CZ40-160	A	15	8	0.5	60	1.1	Y90S-4	1.1	Y90S-4	1.5	Y90L-4
	B	15	7
	C	14	6							1.1	Y90S-4
	D	12	4
CZ40-200	A	16	13	1.1	57	1.5	Y90L-4	1.5	Y90L-4	2.2	Y100L1-4
	B	15	12			1.1	Y90S-4
	C	14	9					1.1	Y90S-4	1.5	Y90L-4
	D	12	7							1.1	Y90S-4
1
CZ40-250	A	20	21	2.5	48	4	Y112M-4	5.5	Y132S-4	5.5	Y132S-4
	B	18	20			3	Y100L2-4	4	Y112M-4
	C	16	15			2.2	Y100L1-4	3	Y100L2-4	4	Y112M-4
	D	13	12					2.2	Y100L1-4	2.2	Y100L1-
CZ40-315	A	22	36	1	45	11	Y160M-4	11	Y160M-4	11	Y160M-4
	B	22	32			5.5	Y132S-4
	C	20	24			4	Y112M-4	5.5	Y132S-4
	D	18	18					4	Y112M-4	5.5	Y132S-4
CZ50-160	A	30	8	1.6	70	1.5	Y90L-4	2.2	Y100L1-4	3	Y100L2-4
	B	26	7			1.1	Y90S-4	1.5	Y90L-4	2.2	Y100L1-4
	C	24	6					1.1	Y90S-4	1.5	Y90L-4
	D	20	4							1.1	Y90S-4
CZ50-200	A	34	14	1.5	70	3	Y100L2-4	4	Y100L2-4	5.5	Y132S-4
	B	32	12			2.2	Y100L1-4	3	Y100L2-4	4	Y112M-4
	C	30	10			1.5	Y90L-4	2.2	Y100L1-4	3	Y100L2-4
	D	24	7					1.5	Y90L-4	2.2	Y100L1-4
CZ50-250	A	34	21	1.1	59	5.5	Y132S-4	5.5	Y132S-4	11	Y160M-4
	B	30	20			4	Y112M-4
	C	26	16			3	Y100L2-4	4	Y112M-4	5.5	Y132S-4
	D	24	12			2.2	Y100L1-4	3	Y100L2-4	4	Y112M-4

Model	Impeller type	speed n=14500r/min
		Capacity Q M³/h	Head H m	NPSH m	Efficency %	Density=1		Density=1.35		Density=1.35
						motor power or model
						kw		kw		kw
CZ50-315	A	42	36	1.8	58	11	Y160M-4	11	Y160M-4	15	Y160L-4
	B	42	32
	C	40	26							11	Y160M-4
	D	36	20
CZ65-160	A	50	8	1.5	68	2.2	Y100L1-4	3	Y100L2-4	4	Y112M-4
	B	48	7
	C	46	6					2.2	Y100L1-4	3	Y100L2-4
	D	38	4
	A	50	13	1	73	4	Y112M-4	4	Y112M-4	5.5	Y132S-4
	B	46	12			3	Y100L2-4
	C	42	10					3	Y100L2-4	4	Y112M-4
	D	36	7			2.2	Y100L1-4	2.2	Y100L1-4	3	Y100L2-4
CZ65-250	A	54	21	0.9	67	11	Y160M-4	11	Y160M-4	11	Y160M-4
	B	50	20			5.5	Y132S-4
	C	46	16			4	Y112M-4	5.5	Y132S-4
	D	40	10					4	Y112M-4	5.5	Y132S-4
CZ65-315	A	64	32	1.3	62	11	Y160M-4	15	Y160L-4	18.5	Y180M-4
	B	61	30
	C	56	28					11	Y160M-4	15	Y160L-4
	D	54	24
	E	50	20			5.5	Y132S-4			11	Y160M-4
	F	52	16					5.5	Y132S-4
CZ80-160	A	75	8	2.2	70	3	Y100L2-4	4	Y112M-4	5.5	Y132S-4
	B	70	7					3	Y100L2-4	4	Y112m-4
	C	70	5			2.2	Y100L1-4
	D	65	4					2.2	Y100L1-4	2.2	Y100L1-4
CZ80-200	A	80	12	1.9	73	5.5	Y132S-4	11	Y160M-4	11	Y160M-4
	B	75	11			4	Y112M-4	5.5	Y132S-4
	C	65	9			3	Y100L2-4	4	Y112M-4	5.5	Y132S-4
	D	60	6					3	Y100L2-4	4	Y112M-4
CZ80-250	A	90	20	1.3	78	11	Y160M-4	11	Y160M-4	15	Y160L-4
	B	90	19
	C	85	17
	D	75	14			5.5	Y132S-4			11	Y160M-4
	E	70	11					5.5	Y132S-4
CZ80-315	A	100	32	1.3	72.5	15	Y160L-4	18.5	Y180M-4	30	Y200L-4
	B	95	30
	C	85	24					15	Y160L-4	18.5	Y180M-4
	D	70	18							15	Y160L-4
CZ80-400	A	105	52	1.2	63	30	Y200L-4	37	Y225S-4	55	Y250M-4
	B	100	50							55	Y250M-4
	C	90	44					30	Y200L-4	45	Y225M-4
	D	80	38			18.5	Y180M-4			37	Y225S-4
	E	75	30					18.5	Y180M-4	30	Y200L-4

Model	Impeller type	speed n=14500r/min
		Capacity Q M³/h	Head H m	NPSH m	Efficency %	Density=1		Density=1.35		Density=1.35
						motor power or model
						kw	-	kw	-	kw	-
CZ100-200	A	115	11	1.2	80	5.5	Y132S-4	11	Y160M-4	11	Y160M-4
	B	100	10					11	Y160M-4	11	Y160M-4
	C	90	8					5.5	Y132S-4	5.5	Y132S-4
	D	80	6					5.5	Y132S-4	5.5	Y132S-4
CZ100-250	A	130	20	1.2	75.5	15	Y160L-4	30	Y200L-4	30	Y200L-4
	B	130	18			11	Y160M-4	15	Y160L-4	30	Y200L-4
	C	120	14					11	Y160M-4	15	Y160L-4
	D	100	10					11	Y160M-4	11	Y160M-4
CZ100-315	A	132	32	1.5	72	30	Y200L-4	30	Y200L-4	37	Y225S-4
	B	120	30			18.5	Y180M-4	30	Y200L-4	30	Y200L-4
	C	100	26			15	Y160L-4	15	Y160L-4	30	Y200L-4
	D	90	21			15	Y160L-4	15	Y160L-4	18.5	Y180M-4
CZ10-400	A	150	50	2	70	45	Y225M-4	45	Y225M-4	75	Y280S-4
	B	140	48			30	Y200L-4	45	Y225M-4	55	Y250M-4
	C	120	40			30	Y200L-4	30	Y200L-4	45	Y225M-4
	D	100	30			18.5	Y180M-4	30	Y200L-4	30	Y200L-4
CZ125-250	A	200	20	2.2	84	18.5	Y180M-4	22	Y180L-4	30	Y200L-4
	B	200	18			15	Y160L-4	18.5	Y180M-4	33	Y200L-4
	C	190	14			11	Y160M-4	15	Y160M-4	22	Y180L-4
	D	160	10			11	Y160M-4	11	Y160M-4	15	Y160L-4
CZ125-315	A	200	30	2	79	30	Y200L-4	37	Y225S-4	45	Y225M-4
	B	180	30			30	Y200L-4	30	Y200L-4	37	Y225S-4
	C	170	24			18.5	Y180M-4	30	Y200L-4	30	Y200L-4
	D	100	18			15	Y160L-4	18.5	Y180M-4	30	Y200L-4
CZ125-400	A	220	50	2.2	74.5	55	Y250M-4	75	Y280S-4	90	Y280M-4
	B	200	48			45	Y225M-4	75	Y280S-4	75	Y280S-4
	C	180	46			37	Y225S-4	55	Y250M-4	75	Y280S-4
	D	170	42			30	Y200L-4	45	Y225M-4	55	Y250M-4
	E	150	36					30	Y200L-4	45	Y225M-4
	F	150	30					30	Y200L-4	37	Y225S-4
CZ150-250	A	320	17	3.5	83	22	Y180L-4	30	Y200L-4	37	Y225S-4
	B	300	15			18.5	Y180M-4
	C	280	13			18.5	Y180M-4
	D	260	12			15	Y160L-4	18.5	Y180M-4	30	Y220L-4
	E	240	11			11	Y160M-4	15	Y160L-4	22	Y180L-4
CZ150-315	A	380	30	3	82.5	45	Y225M-4	75	Y280S-4	-	-
	B	340	26			37	Y225S-4	45	Y225M-4	-	-
	C	320	20			30	Y200L-4	37	Y225S-4	55	Y250M-4
	D	300	17			22	Y180L-4	30	Y200L-4	37	Y225S-4
CZ150-400	A	400	48	4.3	80	75	Y280S-4	110	Y315S-4	-	-
	B	340	40			55	Y250M-4	75	Y280S-4	-	-
	C	300	34			45	Y225M-4	75	Y280S-4	90	Y280S-4
	D	260	28			37	Y225S-4	45	Y225M-4	75	Y280M-4

Model	Impeller type	speed n=14500r/min
		Capacity Q M³/h	Head H m	NPSH m	Efficency %	Density=1		Density=1.35		Density=1.35
						motor power or model
						kw	-	kw	-	kw	-
CZ150-500	A	420	80	2.5	78	132	Y315M1-4	-	-	-	-
	B	400	70			110	Y315S-4	160	Y315M2-4	-	-
	C	360	65			110	Y315S-4	132	Y315M1-4	-	-
	D	340	50			75	Y280S-4	110	Y315S-4	132	Y315M1-4
	E	300	45			55	Y225M-4	75	Y280S-4	110	Y315S-4
	-	-	-	-	-	-	-	-	-	-	-
CZ200-250	A	600	12	3.5	85	30	Y200L-4	37	Y225S-4	55	Y250M-4
	B	540	11			22	Y180L-4	30	Y200L-4	45	Y225M-4
	C	500	10			22	Y180L-4	30	Y200L-4	37	Y225S-4
CZ200-315	A	650	24	4	83.5	55	Y250M-4	75	Y280S-4	100	Y315S-4
	B	600	20			55	Y250M-4	75	Y280S-4	90	Y280M-4
	C	550	16			37	Y225S-4	45	Y225M-4	75	Y280S-4
	D	500	13			30	Y200L-4	37	Y225S-4	55	Y250M-4
CZ200-400	A	650	52	3.5	84	132	Y315M1-4	-	-	-	-
	B	550	45			90	Y280M-4	132	Y315M1-4	-	-
	C	500	40			75	Y280S-4	110	Y315S-4	160	Y315M2-4
	D	450	30			55	Y250M-4	75	Y280S-4	110	Y315S-4
CZ200-500	A	700	75	3	81.5	-	-	-	-	-	-
	B	650	65			160	Y315M2-4	-	-	-	-
	C	550	55			110	Y250M-4	160	Y315M2-4	-	-
	D	450	40			75	Y280S-4	110	Y315S-4	132	Y315M1-4
CZ250-315	A	950	22	5	86	75	Y280S-4	110	Y315S-4	160	Y315M2-4
	B	900	20			75	Y280S-4	90	Y280M-4	132	Y315M1-4
	C	800	16			55	Y250M-4	75	Y280S-4	110	Y315S-4
	D	-	-			-	-	-	-	-	-
CZ250-400	A	1000	44	6	83	160	Y315M2-4	-	-	-	-
	B	900	38			132	Y315M1-4	-	-	-	-
	C	850	30			110	Y315S-4	160	Y315M2-4	-	-
	D	800	24			90	Y280M-4	110	Y315S-4	160	Y315M2-4
CZ250-500	A	1200	80	6	85	-	-	-	-	-	-
	B	1100	70			-	-	-	-	-	-
	C	1000	55			-	-	-	-	-	-
	D	850	45			160	Y315M2-4	-	-	-	-
CZ300-400	A	1500	40	6	87	-	-	-	-	-	-
	B	1400	30			160	Y315M2-4	-	-	-	-
	C	1300	25			132	Y315M1-4	-	-	-	-
	D	1300	20			110	Y315S-4	160	Y315M2-4	-	-
CZ300-500	A	1700	70	6	83.5	-	-	-	-	-	-
	B	1500	60			-	-	-	-	-	-
	C	1300	50			-	-	-	-	-	-
	D	1100	40			-	-	-	-	-	-

Standard Chemical Pump Related Products

Next:Urea Pump

Catalog:Chemical Pumps

Above:Stainless Steel Corrosion-Resistant Pump

欧美日韩亚洲国产精品,成全视频免费高清,国产免费一区二区在线A片视频,17C最新网名2022FUN

Standard Chemical Pump
