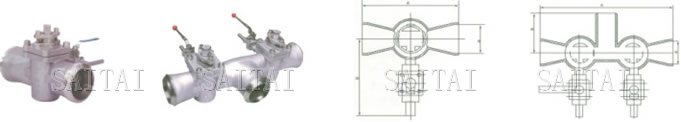

Schematic Diagram of Installation
| DN(in) | 150LB SINGLE LUSH | ||
| A | B | f | |
| 2 | 216 | 278 | 54.8 |
| 3 | 305 | 278 | 82.8 |
| 4 | 356 | 293 | 108.2 |
| 6 | 432 | 308 | 161.5 |
| 8 | 508 | 320 | 211.6 |
| 10 | 572 | 333 | 264.7 |
| DN(in) | 150LB DOUBLE LUSH | |||
| A | B | C | f | |
| 2 | 432 | 115 | 278 | 54.8 |
| 3 | 585 | 140 | 293 | 82.8 |
| 4 | 686 | 150 | 308 | 108.2 |
| 6 | 842 | 200 | 320 | 161.5 |
| 8 | 970 | 270 | 270 | 211.6 |
| 10 | 1144 | 350 | 350 | 264.7 |
| DN(in) | 300LB SINGLE LUSH | ||
| A | B | f | |
| 2 | 216 | 278 | 54.8 |
| 3 | 305 | 278 | 82.8 |
| 4 | 356 | 293 | 108.2 |
| 6 | 432 | 308 | 161.5 |
| 8 | 508 | 320 | 211.6 |
| 10 | 572 | 333 | 264.7 |
| DN(in) | 300LB DOUBLE FLUSH | |||
| A | B | C | f | |
| 2 | 432 | 115 | 278 | 54.8 |
| 3 | 585 | 140 | 293 | 82.8 |
| 4 | 686 | 150 | 308 | 108.2 |
| 6 | 842 | 200 | 320 | 161.5 |
| 8 | 970 | 270 | 270 | 211.6 |
| 10 | 1144 | 350 | 350 | 264.7 |
