Summary:
The water-using pressure reducing valve made in our company is used in various building's water supply system, fire-fighting system, central air-conditioning system and warming systems. It is used for the pressure reduction of branch pipes so as to have the water supply pressure distributed more reasonably, to avoid over-pressure of partial water supply and optimize the water supply of high buildings. And it can replace the frequency-adjusting speed variable water pump of the quarters and the water pump of the quarters in the fire-fighting water supply system. When it is used in the household water supply system, it can protect all tape halters and other water utensils.
Features:
a. Using a directly acting membrane structure, with very simple internal structure, without jamming reliable performance and durable. b. Dirt-resisting and water filth preventing, no need of the filter and the by-pass pipe, very simple pipe-fitting which saves a great deal of space and pipe-fitting cost. c. Adjusting outlet pressure precisely, which is not influenced by the inlet one, in general conditions (the variable of the output pressure is 8% of Δ P1). d. Extremely good hydraulic performance, small pressure loss, the pressure reducing ratio can be up to over 10:1. e. Capable of satisfying multiple pressures reducing requirements, especially suitable for the branch-pipe pressure reducing system.
Technical parameters
| Type | Model | PN(MPa) | DN(mm) | Way of connection | Body material | Outlet pressure (MPa) | Working temperature |
| Branch-pipe pressure reducing valve | YZ11X-16T, YZ11X-25T | 1.6, 2.5 | 15~50 | Inner thread | Bronze | 0.05~0.6 (adjustable) |
0~80°C |
| YZ11X-16P, YZ11X-25P | Stainless steel |

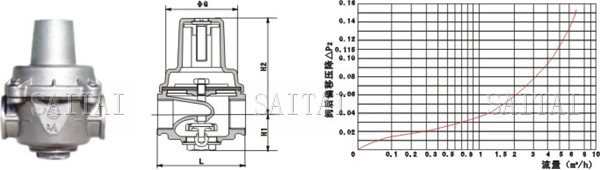

Dimensions
| DN | Dimensions(mm) | Weight (Kg) | ||||
| mm | In | A | B | C | fG | |
| 15 | 1/2 | 31 | 60 | 76.5 | 59 | 1.2 |
| 20 | 3/4 | 31 | 75 | 76.5 | 73 | 1.2 |
| 25 | 1 | 36 | 88 | 85 | 81 | 1.4 |
| 32 | 11/4 | 42 | 93 | 98 | 81 | 1.5 |
| 40 | 11/2 | 45 | 98 | 102 | 85 | 2 |
| 50 | 2 | 54 | 130 | 117 | 98 | 2.65 |

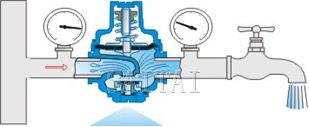

Typical installation
