Summary
Flanged Sleeved Plug Valve according to ANSI is applicable to the cutting and connection of pipeline's medium that aroused in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power industry etc. It is under nominal pressure of CLASS150-900LBS, and works at the temperature of -29~180°C.
a. The product has reasonable structure, reliable sealing, excellent performance and beautiful appearance.
b. Its sealing is realized by the sealing face around the sleeve. It has unique 360 degree metal edge for protection and fixing of the sleeve.
c. There is no cavity in the valve for the accumulation of medium.
d. Metal edge provides the function of self-cleaning when the plug is rotated. It is applicable to the operation condition that is glutinous sand apt to smudge.
e. Its double-direction flow makes installation and use more convenient.
f. The materials of the parts and sizes of flanges can be configured reasonably according to the actual operation condition the customer required, so as to meet the various needs of engineering.
Supplier: Saitai Valve, China
Manufacturer: Shop in Shanghai Qingpu Industrial Park
Specifications
| Structural formation | BB-BG-OS &Y |
| Diving manner | Wrench wheel, worm &worm gear, pneumatic, electric-actuated |
| Design standard | AP1599, AP16D |
| Face to face | ASME B16.10 |
| Flange end | ASME B16.5 |
| Test &inspection | AP1598,AP16D |
Performances
| PN(LB) | Shell test (MPa) | Sealing test (MPa) | Suitable temperature | Suitable medium |
| 150 | 3.0 | 2.2 | =180°C | Water oil &gas |
| 300 | 7.5 | 5.5 | ||
| 600 | 15.0 | 11.0 | ||
| 900 | 22.5 | 16.5 |
Materials
| NO | Part name | Material |
| 1 | Body | ASTM A216-WCB ASTM A351-CF8, CF8M, CF3, CF3M |
| 2 | Sleeve | PTFE |
| 3 | Plug | ASTM A217-WC1, WC6, WC9, C5 ASTM A351-CF8, CF8M, CF3, CF3M |
| 4 | Gasket | PTFE |
| 5 | Adjusting gasket | ASTM A182-F304, F316, F321, F304L, F316, ASTM A182-Gr.F6a ASTM A182-F22 |
| 6 | Cover | ASTM A216-WCB, ASTM A351-CF8, CF8M, CF3, CF3M |
| 7 | Bolt | ASTM A194-2H, A194-8, A194-8M |
| 8 | Nut | ASTM A194-2H, A194-8, A194-8M |
| 9 | Adjusting Gland | ASTM A216-WCB, ASTM A351-CF8, CF8M, CF3, CF3M |
| 10 | Nut | ASTM A193-B7,A193-B8,A193-B8M |
| 11 | Wrench | ASTM A216-WCB |

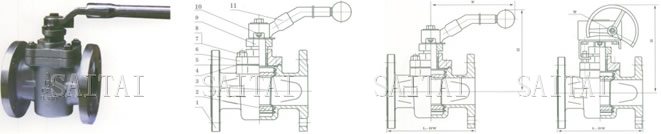

Dimensions and Weights
| Pressure | 150LB | |||||||||||||||
| Size | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| in | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | |
| L-RF | 108 | 117 | 127 | 140 | 165 | 178 | 190 | 203 | 229 | 245 | 267 | 292 | 330 | 356 | 381 | |
| L-BW | 152 | 178 | 203 | 216 | 229 | 267 | 305 | 330 | 356 | 381 | 394 | 457 | 533 | 610 | 686 | |
| H | 110 | 115 | 115 | 135 | 140 | 150 | 165 | 180 | 380 | 460 | 520 | 580 | 260 | 680 | 760 | |
| W | 175 | 175 | 175 | 220 | 280 | 305 | 350 | 405 | 300 | 300 | 320 | 320 | 350 | 380 | 450 | |
| Weight(kg) | 8.5 | 9.5 | 10.0 | 12 | 14 | 22 | 22 | 26 | 40 | 60 | 70 | 130 | 219 | 381 | 570 | |
| Pressure | 300LB | |||||||||||||||
| Size | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| in | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | |
| L-RF | 108 | 117 | 127 | 140 | 165 | 178 | 190 | 203 | 229 | 245 | 267 | 292 | 330 | 356 | 381 | |
| L-BW | 152 | 178 | 203 | 216 | 229 | 267 | 305 | 330 | 356 | 381 | 394 | 457 | 533 | 610 | 686 | |
| H | 110 | 115 | 115 | 135 | 140 | 150 | 165 | 180 | 380 | 460 | 520 | 580 | 260 | 680 | 760 | |
| W | 175 | 175 | 175 | 220 | 280 | 305 | 350 | 405 | 300 | 300 | 320 | 320 | 350 | 380 | 450 | |
| Weight(kg) | 8.5 | 9.5 | 10.0 | 12 | 14 | 22 | 22 | 26 | 40 | 60 | 70 | 130 | 219 | 381 | 570 | |
| Pressure | 600LB | |||||||||||||||
| Size | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| in | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | |
| L-RB.BW | 165 | 190 | 216 | 229 | 214 | 292 | 330 | 356 | 432 | 508 | 559 | 660 | 787 | 838 | 889 | |
| H | 110 | 115 | 115 | 135 | 140 | 150 | 165 | 180 | 380 | 460 | 520 | 580 | 260 | 680 | 760 | |
| W | 175 | 175 | 175 | 220 | 280 | 305 | 350 | 405 | 300 | 300 | 320 | 320 | 350 | 380 | 450 | |
| Weight(kg) | 11 | 13 | 17 | 20 | 23 | 27 | 31 | 36 | 72 | 98 | 141 | 245 | 330 | 515 | 710 | |
| Pressure | 900LB | |||||||||||||||
| Size | mm | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| in | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | |
| L-RF.BW | 229 | 229 | 254 | 279 | 305 | 368 | 419 | 381 | 457 | 559 | 610 | 737 | 838 | 965 | 1029 | |
| H | 110 | 115 | 115 | 135 | 140 | 150 | 165 | 180 | 380 | 460 | 520 | 580 | 260 | 680 | 760 | |
| W | 175 | 175 | 175 | 220 | 280 | 305 | 350 | 405 | 300 | 300 | 320 | 320 | 350 | 380 | 450 | |
| Weight(kg) | 13 | 16 | 21 | 24 | 28 | 32 | 40 | 47 | 91 | 117 | 165 | 285 | 420 | 610 | 860 | |
Note: 4" or above with gear
