Summary
Flanged Sleeved Plug Valves according to DIN is applicable to the cutting and connection of pipelines medium that aroused in various industries such as petroleum, chemical industry, pharmacy, chemical fertilizer, power industry etc. It is under nominal pressure of PN1.6~PN16MPa, and works at the temperature of -29~180°C.
a. The product has reasonable structure, reliable sealing, excellent performance and beautiful appearance.
b. Its sealing is realized by the sealing face around the sleeve. It has unique 360 degree metal edge for protection and fixing of the sleeve.
c. There is no cavity in the valve for accumulation of medium.
d. Metal edge provides the function of self-cleaning when the plug is rotated, and it's applicable to the operation condition that is glutinous sand apt to smudge.
e. Its double-direction flow makes installation and use more convenient.
f. The materials of the parts and sizes of flanges can be configured reasonably according the actual operation conditions the customer required, so as to meet the various needs of engineering.
Supplier: Saitai Valve, China
Manufacturer: Shop in Shanghai Qingpu Industrial Park
Specifications
| Structural formation | BC |
| Diving manner | Wrench wheel, worm&worm gear, pneumatic, electric-actuated |
| Design standard | API 599, API 6D |
| Face to face | DIN3002F1 |
| Flange end | DIN2543-2549 |
| Test&inspection | DIN 3230 |
Performances
| PN(MPa) | Shell test (MPa) | Sealing test (MPa) | Suitable temperature | Suitable medium |
| 1.6 | 2.4 | 1.76 | =180°C | Water oil&gas |
| 2.5 | 3.75 | 2.75 | ||
| 4.0 | 6.0 | 4.4 | ||
| 6.4 | 9.6 | 7.04 | ||
| 10.0 | 15.0 | 11.0 | ||
| 16.0 | 24.0 | 17.6 |
Materials
| NO | Part name | Material |
| 1 | Body | GS-C25 1.7363 1.4308 1.4408 1.4306 1.4301 |
| 2 | Sleeve | PTFE |
| 3 | Plug | 1.7363 1.4308 1.4408 1.4306 1.4301 |
| 4 | Gasket | PTFE |
| 5 | Adjusting gasket | ASTM A182-Gr.F6a ASTM A182-F22 ASTM A182-F304 F316F321,F304L,316L |
| 6 | Cover | GS-C25 1.7363 1.4308 1.4408 1.4306 1.4301 |
| 7 | Adjusting Bolt | ASTM A193-B7 A320-B8 193-B8M |
| 8 | Nut | ASTM A194-2H, A194-8, A194-8M |
| 9 | Bolt | ASTM A193-B7,A193-B8,A193-B8M |
| 10 | Yoke | WCB |
| 11 | Worm | Q235 WCB |

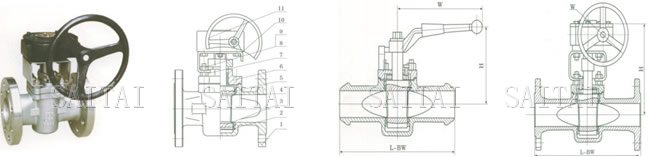

Dimensions and Weights
| Pressure | PN16 | ||||||||||||||
| Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| L-RF.BW | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 |
| H | 150 | 155 | 160 | 180 | 190 | 200 | 220 | 230 | 380 | 460 | 520 | 580 | 620 | 680 | 740 |
| W | 300 | 300 | 300 | 350 | 400 | 500 | 500 | 550 | 300 | 300 | 320 | 320 | 350 | 380 | 380 |
| Weight(kg) | 9 | 10 | 11 | 13 | 14 | 19 | 23 | 27 | 43 | 62 | 75 | 155 | 222 | 390 | 580 |
| Pressure | PN25 | ||||||||||||||
| Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| L-RF.BW | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | 980 |
| H | 150 | 155 | 160 | 180 | 190 | 200 | 220 | 230 | 380 | 460 | 520 | 580 | 620 | 680 | 740 |
| W | 300 | 300 | 300 | 350 | 400 | 500 | 500 | 550 | 300 | 300 | 320 | 320 | 350 | 380 | 380 |
| Weight(kg) | 10 | 11 | 13 | 15 | 17 | 22 | 31 | 55 | 77 | 88 | 190 | 190 | 235 | 399 | 630 |
| Pressure | PN40 | ||||||||||||||
| Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| L-RF.BW | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | |
| H | 190 | 195 | 225 | 260 | 280 | 310 | 340 | 395 | 435 | 470 | 535 | 590 | 630 | 680 | 720 |
| W | 120 | 140 | 140 | 180 | 200 | 220 | 260 | 280 | 300 | 340 | 400 | 450 | 450 | 500 | 500 |
| Weight(kg) | 12 | 14 | 18 | 21 | 24 | 29 | 33 | 39 | 75 | 103 | 146 | 251 | 337 | 521 | 720 |
| Pressure | PN60 | ||||||||||||||
| Size | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
| L-RF.BW | 130 | 150 | 160 | 180 | 200 | 230 | 290 | 310 | 350 | 400 | 480 | 600 | 730 | 850 | |
| H | 190 | 195 | 225 | 260 | 280 | 310 | 340 | 395 | 435 | 470 | 535 | 590 | 630 | 680 | 720 |
| W | 120 | 140 | 140 | 180 | 200 | 220 | 260 | 280 | 300 | 340 | 400 | 450 | 450 | 500 | 500 |
| Weight(kg) | 14 | 17 | 22 | 25 | 29 | 34 | 43 | 50 | 94 | 123 | 170 | 291 | 430 | 625 | 875 |
Note: 4" or above with gear
