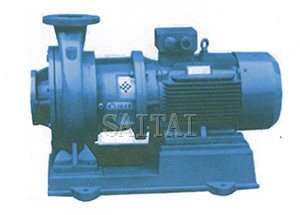

IRB型便拆式熱水循環泵、GRB型便拆式高溫離心泵
IRB 型便拆式熱水循環泵、GRB型便拆式高溫離心泵（以下簡稱：IRB、GRB熱水循環泵），為便拆式臥式熱水離心泵，其外形安裝尺寸均與ISB型泵一致，則較ISB型泵具有更高的水力效率和更優的氣蝕性能，且結構更可靠，軸密封和使用壽命上均有較大提高。非自吸裝有標準風冷電機和機械密封，獨特設計的電機和泵，采用同軸聯接。帶有法蘭的螺旋形通道鑄鐵泵殼，當泵轉子部件需保養或更換配件時，不需拆電機，泵體只需打開泵蓋取出葉輪，密封更換便可，葉輪經過靜平衡校驗，用螺母固定在軸上，背部有平衡孔表面光滑，被加工的尺寸上高度特確，并保證具有良好的平衡。用于輸送介質稀薄、清潔的非侵蝕型、非易爆且不含固體顆粒或纖維的，IRB型泵輸送最高溫度為120℃液體GRB型最高溫度240℃液體。適用于鍋爐熱水循環、冶金、電站、塑料、橡膠、紡織、化工、木材與造紙等行業輸送不含顆粒經水處理的壓力中性熱水。
IRB型便拆式熱水循環泵、GRB型便拆式高溫離心泵
IRB、GRB熱水循環泵型號說明
IRB、GRB熱水循環泵型號說明
IRB、GRB熱水循環泵性能參數
| 性能 | 流量 | 揚程 | 配套功率 | 工作壓力 | 介質溫度范圍 | 進出口徑 |
| 參數 | 1900m3/h | 133m | 250kw | 10巴巴和16巴 | -10℃―+80℃-+240℃ | DN40-DN400mm |
ISB、IRB、IHB、YB系列便拆式離心泵性能參數表 I
| 型號 | 流量 | 揚程 m | 效率 % | 轉速 r/min | 電機功率 | 必需氣蝕余量 | 重量 Kg | 型號 | 流量 | 揚程 m | 效率 % | 轉速 r/min | 電機功率 | 必需氣蝕余量 | 重量 Kg | |||
| m3/h | L/S | m3/h | L/S | |||||||||||||||
| 40-100/96 | 3.9 5.6 7.4 | 1.08 1.56 2.06 | 10.6 10 9 | 49 55 43 | 2900 | 0.37 | 2.3 | 29 | 65-160/152 | 16.4 23.4 30.4 | 4.56 6.5 8.44 | 30 28 24.5 | 57 65 62 | 2900 | 4.0 | 2.5 | 75 | |
| 40-100/106 | 4.4 6.3 8.3 | 1.22 1.75 2.31 | 13.2 12.5 11.3 | 51 57 56 | 2900 | 0.55 | 2.3 | 30 | 65-160/165 | 17.5 25 32.5 | 4.86 6.94 9.04 | 34.4 32 27.5 | 57 66 63 | 2900 | 4.0 | 2.5 | 75 | |
| 40-125/132 | 3.9 5.6 7.4 | 1.08 1.56 2.06 | 17.6 16 14.4 | 44 48 46 | 2900 | 0.75 | 2.3 | 32 | 65-200/185 | 15.2 21.8 28.3 | 4.22 6.06 7.86 | 40.5 38 34 | 49 58 58 | 2900 | 5.5 | 2.5 | 100 | |
| 40-125/142 | 4.4 6.3 8.3 | 1.22 1.75 2.31 | 21 20 18 | 44 49 47 | 2900 | 1.1 | 2.3 | 35 | 65-200/195 | 16.4 23.5 30.5 | 4.56 6.53 8.47 | 46.4 44 40 | 61 60 61 | 2900 | 7.5 | 2.5 | 110 | |
| 40-160/142 | 3.8 5.5 7.2 | 1.06 1.53 2.00 | 25.5 24 22.5 | 40 40 40 | 2900 | 1.1 | 2.3 | 32 | 65-200/205 | 17.5 25 32.5 | 4.86 6.94 9.03 | 52.7 50 45.5 | 52 61 62 | 2900 | 7.5 | 2.5 | 115 | |
| 40-160/152 | 4.1 5.9 7.8 | 1.13 1.63 2.16 | 29 28 26.3 | 36 41 41 | 2900 | 1.5 | 2.3 | 33 | 65-250/235 | 15 21.6 28 | 4.17 6.0 7.78 | 61 60 58 | 41 51 54 | 2900 | 11.0 | 2.5 | 170 | |
| 40-160/165 | 4.4 6.3 8.3 | 1.22 1.75 2.31 | 34 32.30 | 40 44 43 | 2900 | 2.2 | 2.3 | 35 | 65-200/245 | 16.4 23.4 30.5 | 4.56 6.5 8.47 | 71.5 70 67 | 48 53 55 | 2900 | 11.0 | 2.5 | 170 | |
| 40-200/185 | 3.7 5.3 7.3 | 1.03 1.47 1.74 | 38 36 34.5 | 32 32 32 | 2900 | 2.2 | 2.3 | 50 | 65-250/255 | 17.5 25 32.5 | 4.89 6.94 9.03 | 82 80 76.5 | 42 53 55 | 2900 | 15.0 | 2.5 | 185 | |
| 40-200/195 | 4.1 5.9 7.8 | 1.4 1.64 2.17 | 45 44 42 | 24 34 32 | 2900 | 3.0 | 2.3 | 58 | 65-315/285 | 14.4 20.6 26.8 | 4.0 5.72 7.44 | 86 85 83 | 33 41 44 | 2900 | 15.0 | 2.5 | 210 | |
| 40-200/205 | 4.4 6.3 8.3 | 1.22 1.75 2.31 | 51 50 48 | 29 36 35 | 2900 | 4.0 | 2.3 | 69 | 65-315/295 | 15.7 22.5 29.2 | 4.36 6.25 8.0 | 103 101 98 | 34 42 45 | 2900 | 18.5 | 2.5 | 225 | |
| 40-250/235 | 3.8 5.5 7.2 | 1.06 1.53 2.00 | 61.5 60 56 | 26 30 29 | 2900 | 5.5 | 2.3 | 80 | 65-315/307 | 16.6 23.7 31 | 4.61 6.58 8.6 | 115 113 110 | 35 43 47 | 2900 | 22.0 | 2.5 | 260 | |
| 40-250/245 | 4.1 5.9 7.8 | 1.14 1.64 2.17 | 72 70 65 | 27 31 30 | 2900 | 5.5 | 2.3 | 105 | 65-315/316 | 17.5 25 32.5 | 4.86 6.94 9.03 | 127 125 122 | 35 43 47 | 2900 | 30.0 | 2.5 | 320 | |
| 50-250/255 | 4.4 6.3 8.3 | 1.22 1.75 2.31 | 82 80 74 | 27 31 31 | 2900 | 7.5 | 2.3 | 110 | 80-100/96 | 31.3 45 58 | 8.7 12.5 16.1 | 11 10 8 | 69 75 71 | 2900 | 2.2 | 3.0 | 60 | |
| 50-100/96 | 8 11 14.5 | 2.22 3.05 4.03 | 11 10 9 | 57 63 60 | 2900 | 0.75 | 2.3 | 35 | 80-100/106 | 35 50 65 | 9.72 13.9 18.1 | 13.8 12.5 10 | 70 76 73 | 2900 | 3.0 | 3.0 | 65 | |
| 50-100/106 | 8.8 12.5 16.5 | 2.44 3.47 4.53 | 13.6 12.5 11.3 | 58 65 63 | 2900 | 1.1 | 2.3 | 40 | 80-125/132 | 31.3 45 58 | 8.7 12.5 16.1 | 17.5 16 13.6 | 67 74 72 | 2900 | 4.0 | 3.0 | 80 | |
| 50-125/132 | 8 11 14.5 | 2.22 3.05 4.03 | 17 16 14 | 61 60 58 | 2900 | 1.1 | 2.3 | 40 | 80-125/142 | 35 50 65 | 9.72 13.9 18.1 | 22 20 17 | 70 75 73 | 2900 | 5.5 | 3.0 | 100 | |
| 50-125/142 | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 21.5 20 17.8 | 52 61 60 | 2900 | 1.5 | 2.3 | 45 | 80-160/142 | 30.3 43.3 56.3 | 8.4 12.0 15.6 | 27 24 20 | 64 72 70 | 2900 | 5.5 | 3.0 | 100 | |
| 50-160/142 | 7.3 10.4 13.5 | 2.03 2.89 3.75 | 23 22 20.5 | 50 50 50 | 2900 | 1.5 | 2.3 | 46 | 80-160/152 | 32.7 46.7 61 | 9.1 13.0 16.9 | 30.6 28 25 | 65 73 72 | 2900 | 7.5 | 3.0 | 105 | |
| 50-160/152 | 8.2 11.7 15.2 | 2.28 3.25 4.22 | 29 28 26 | 40 51 50 | 2900 | 2.2 | 2.3 | 50 | 80-160/165 | 35 50 65 | 9.72 13.9 18.1 | 35 32 28 | 66 74 75 | 2900 | 7.5 | 3.0 | 105 | |
| 50-160/165 | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 33 32 30 | 45 52 51 | 2900 | 3.0 | 2.3 | 60 | 80-200/185 | 30.5 43.5 56.6 | 8.5 12.1 15.7 | 40.6 38 33.4 | 56 68 69 | 2900 | 7.5 | 3.0 | 120 | |
| 50-200/185 | 7.5 10.6 13.8 | 2.08 2.94 3.83 | 40 38 35 | 44 44 44 | 2900 | 3.0 | 2.3 | 70 | 80-200/195 | 32.8 47 61 | 9.1 13.1 16.9 | 47 44 40 | 57 69 72 | 2900 | 11.0 | 3.0 | 170 | |
| 50-200/195 | 8.3 11.7 15.3 | 2.31 3.25 4.25 | 45.8 44 42 | 37 45 45 | 2900 | 4.0 | 2.3 | 85 | 80-200/205 | 35 50 65 | 9.72 13.9 18.1 | 53.3 50 46 | 58 70 71 | 2900 | 15.0 | 3.0 | 175 | |
| 50-200/205 | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 52 50 48 | 38 46 46 | 2900 | 5.5 | 2.3 | 105 | 80-250/235 | 30 43.3 56 | 8.3 12.0 15.6 | 63 60 54 | 54 61 62 | 2900 | 15.0 | 3.0 | 190 | |
| 50-250/225 | 7.1 10.0 13.1 | 1.97 2.78 3.64 | 53.2 52 50.4 | 27 36 39 | 2900 | 5.5 | 2.3 | 110 | 80-250/245 | 32.5 46.7 61 | 9.0 13.0 16.9 | 73 70 64 | 53 62 63 | 2900 | 18.5 | 3.0 | 210 | |
| 50-250/235 | 7.6 10.8 14 | 2.11 3.0 3.98 | 61.5 60 58 | 27.5 37 40 | 2900 | 7.5 | 2.3 | 115 | 80-250/255 | 35 53 65 | 9.72 13.9 18.1 | 83 80 72 | 55 62 63 | 2900 | 22.0 | 3.0 | 240 | |
| 50-250/245 | 8.2 11.6 15.2 | 2.28 3.22 4.22 | 71.5 70 68 | 29 38 41 | 2900 | 7.5 | 2.3 | 120 | 80-315/285 | 29 41 53.6 | 9.1 11.4 14.9 | 88 85 83 | 40 53 57 | 2900 | 22.0 | 3.0 | 275 | |
| 50-250/255 | 8.8 12.5 16.3 | 2.44 3.47 4.53 | 82 80 77.5 | 29 38 40 | 2900 | 11.0 | 2.3 | 160 | 80-315/295 | 31 44.5 58 | 8.6 12.4 16.1 | 103 101 97 | 43 55 58 | 2900 | 30.0 | 3.0 | 340 | |
| 65-100/96 | 15.6 22.3 29 | 4.3 6.19 8.1 | 11 10 8.4 | 68 70 70 | 2900 | 1.1 | 2.5 | 40 | 80-315/301 | 32.5 46.5 60.5 | 9 12.9 16.8 | 116 113 110 | 44 56 59 | 2900 | 30.0 | 3.0 | 345 | |
| 65-100/106 | 17.5 25 32.5 | 4.68 6.94 9.03 | 13.7 12.5 10.5 | 70 72 71 | 2900 | 1.5 | 2.5 | 45 | 80-315/321 | 35 50 65 | 9.72 13.9 18.1 | 128 125 122 | 45 57 60 | 2900 | 37.0 | 3.0 | 360 | |
| 65-125/132 | 15.6 22.3 29 | 4.33 6.19 8.1 | 17.5 16 14.4 | 51 69 68 | 2900 | 2.2 | 2.5 | 50 | 100-200/195 | 62.6 89 116 | 17.4 24.7 32.2 | 11 10 8.8 | 67 77 77 | 2900 | 4.0 | 4.5 | 115 | |
| 65-125/142 | 17.5 25 32.5 | 4.86 6.94 9.03 | 22 20 18 | 63 71 70 | 2900 | 3.0 | 2.5 | 60 | 100-200/205 | 70 100 130 | 19.4 27.8 36.1 | 13.6 12.5 11 | 69 79 77 | 2900 | 5.5 | 4.5 | 90 | |
| 65-160/142 | 15 21.6 28 | 4.17 6.10 8.44 | 26 24 21 | 53 63 62 | 2900 | 3.0 | 2.5 | 65 | 100-250/245 | 62.6 89 116 | 17.4 24.7 32.2 | 19 16 11 | 71 77 66 | 2900 | 7.5 | 4.5 | 120 | |
注：尺寸最終以訂貨后提供尺寸為準。
ISB、IRB、IHB、YB系列便拆式離心泵性能參數表 II
| 型 號 | 流量 | 揚程 m | 效率 % | 轉速 r/min | 電機功率 | 必需氣蝕余量 | 重量 Kg | 型號 | 流量 | 揚程 m | 效率 % | 轉速 r/min | 電機功率 | 必需氣蝕余量 | 重量 Kg | |||
| m3/h | L/S | m3/h | L/S | |||||||||||||||
| 100-250/250 | 70 100 130 | 19.4 27.8 36.1 | 23.5 20 14 | 73 79 68 | 1450 | 11.0 | 4.5 | 170 | 150-250/245 | 129 184 240 | 35.8 51.2 66.7 | 18.5 17 14.4 | 75 81 79 | 1450 | 15.0 | 3.0 | 265 | |
| 100-315/295 | 60.6 86.6 112.5 | 16.8 24.1 31.3 | 27 24 18 | 66 75 68 | 1450 | 11.0 | 4.5 | 180 | 150-250/255 | 140 200 260 | 38.9 55.6 72.2 | 21.8 20 17 | 76 82 80 | 1450 | 18.5 | 3.0 | 300 | |
| 100-315/307 | 65.4 93.5 121.6 | 18.2 26.2 33.8 | 32 28 21 | 71 77 70 | 1450 | 11.0 | 4.5 | 185 | 150-315/295 | 121 173 225 | 33.6 48.1 62.5 | 25 24 21 | 71 79 77 | 1450 | 18.5 | 3.5 | 310 | |
| 100-315/321 | 70 100 130 | 19.4 27.8 36.1 | 36.5 32 24 | 73 77 68 | 1450 | 15.0 | 4.0 | 200 | 150-315/307 | 131 187 243 | 36.4 51.9 67.5 | 29.5 28 24.4 | 72 80 80 | 1450 | 22.0 | 3.5 | 335 | |
| 100-400/375 | 61 87 113 | 16.9 24.2 31.4 | 41 38 34 | 63 73 71 | 1450 | 15.0 | 4.0 | 195 | 150-315/321 | 140 200 260 | 38.9 55.6 72.2 | 33.8 32 28 | 73 81 76 | 1450 | 30.0 | 3.5 | 410 | |
| 100-400/385 | 65.4 93.5 121.6 | 18.2 26.0 33.8 | 47.5 44 37 | 65 75 73 | 1450 | 18.5 | 4.0 | 215 | 150-400/365 | 112 160 208 | 31.1 44.4 57.8 | 34 32 28 | 68 72 72 | 1450 | 22.0 | 3.5 | 430 | |
| 100-400/400 | 70 100 130 | 19.4 27.8 36.1 | 54 50 42 | 64 76 78 | 1450 | 22.0 | 4.0 | 245 | 150-400/375 | 122 174 226 | 33.9 48.3 62.9 | 41 38 33 | 70 75 74 | 1450 | 30.0 | 3.5 | 480 | |
| 100-250/230（I） | 61 87 113 | 16.9 24.2 31.4 | 65 60 51 | 63 70 69 | 2900 | 30.0 | 4.0 | 330 | 150-400/385 | 131 187 243 | 36.4 51.9 67.5 | 46.6 44 38.3 | 71 77 76 | 1450 | 37.0 | 3.5 | 500 | |
| 100-250/245（I） | 65.4 93.5 121.6 | 18.2 26.0 33.8 | 76 70 53.5 | 64 71 70 | 2900 | 30.0 | 4.0 | 330 | 150-400/400 | 140 200 260 | 38.9 55.6 72.2 | 53 50 44 | 72 78 72 | 1450 | 45.0 | 3.5 | 515 | |
| 100-250/250（I） | 70 100 130 | 19.4 27.8 36.1 | 87 85 76 | 55 65 66 | 2900 | 37.0 | 4.0 | 345 | 150-510/475 | 112 160 208 | 31.1 44.4 57.8 | 56.5 54.5 51 | 62 67 66 | 1450 | 45.0 | 4.2 | 530 | |
| 100-315/285（I） | 58 82 107 | 16.1 22.8 29.7 | 90 85 76 | 55 65 66 | 2900 | 37.0 | 4.0 | 385 | 150-510/485 | 122 174 226 | 33.9 48.3 62.9 | 65 62 58 | 63 69 68 | 1450 | 55.0 | 4.2 | 765 | |
| 100-315/295（I） | 63 90 117 | 17.5 25.0 32.5 | 106.6 101 92 | 57 67 68 | 2900 | 45.0 | 4.0 | 440 | 150-510/495 | 131 187 243 | 36.4 51.9 67.5 | 73 70 66 | 65 71 69 | 1450 | 75.0 | 4.2 | 860 | |
| 100-315/307（I） | 66.5 95 123.6 | 18.5 26.4 34.3 | 119 113 104 | 58 68 69 | 2900 | 55.0 | 4.0 | 550 | 150-510/510 | 140 200 260 | 38.9 55.6 72.2 | 84 80 75 | 66 72 69 | 1450 | 75.0 | 4.2 | 860 | |
| 100-315/321（I） | 70 100 130 | 19.4 27.8 36.1 | 132 125 114 | 58 69 69 | 2900 | 75.0 | 4.0 | 685 | 200-250/235 | 157 243 316 | 43.7 67.5 87.8 | 16 13.5 9.0 | 76 78 76 | 1450 | 15 | 4.0 | 270 | |
| 125-200/195 | 96 143.172 | 23.9 39.7 47.8 | 10.4 10 9.6 | 80 83 82 | 1450 | 7.5 | 4.0 | 130 | 200-250/245 | 189 270 351 | 52.5 75 97.5 | 19 17 13 | 77 81 77 | 1450 | 18.5 | 4.0 | 390 | |
| 125-200/205 | 86 160 192 | 26.7 44.4 53.3 | 13.12.5 12 | 81 85 82 | 1450 | 11.0 | 4.0 | 180 | 200-250/255 | 210 300 360 | 58.3 83.3 100 | 22.5 20 16 | 78 83 78 | 1450 | 22 | 4.0 | 430 | |
| 125-250/245 | 86 143 172 | 23.9 39.7 47.8 | 18 16 13.6 | 77 80 76 | 1450 | 11.0 | 4.0 | 210 | 200-315/295 | 189 270 324 | 52.5 75 90 | 27 23 20 | 77 81 78 | 1450 | 22 | 6.0 | 430 | |
| 125-250/255 | 96 160 192 | 26.7 44.4 53.3 | 22.6 20 17 | 79 83 80 | 1450 | 15.0 | 4.0 | 225 | 200-315/307 | 196 281 337 | 54.4 78.1 93.6 | 31 27 24 | 78 82 80 | 1450 | 30 | 6.0 | 480 | |
| 125-315/295 | 83 138 166 | 21.7 38.3 46.1 | 27 24 21 | 69 76 71 | 1450 | 15.0 | 4.0 | 260 | 200-315/321 | 210 300 360 | 58.3 83.3 100 | 36 32 28 | 77 83 81 | 1450 | 37 | 6.0 | 535 | |
| 125-315/307 | 90 150 180 | 25 41.7 50 | 31.5 28 24.5 | 70 79 76 | 1450 | 18.5 | 4.0 | 280 | 200-400/365 | 176.4 252 302 | 49 70 84 | 34 30 25 | 76 79 73 | 1450 | 45 | 4.0 | 585 | |
| 125-315/321 | 96 160 192 | 26.7 44.4 53.3 | 36 32 28 | 72 81 77 | 1450 | 22.0 | 5.0 | 315 | 200-400/375 | 189 270324 | 52.5 75 90 | 48 37 33 | 77 81 79 | 1450 | 45 | 4.0 | 585 | |
| 125-400/375 | 83 138 166 | 21.7 38.3 46.1 | 41.3 37.5 34.5 | 71 75 71 | 1450 | 22.0 | 5.0 | 355 | 200-400/380 | 201.6 288 345.5 | 56 80 96 | 48 44 38 | 71 83 81 | 1450 | 55 | 4.0 | 700 | |
| 125-400/385 | 90 150 180 | 25 41.7 50 | 48.4 44 40.5 | 72 77 76 | 1450 | 30.0 | 5.0 | 437 | 200-400/400 | 210 300 360 | 58.3 83.3 100 | 55 50 44 | 78 84 82 | 1450 | 55 | 4.0 | 700 | |
| 125-400/400 | 96 160 192 | 26.7 44.4 53.3 | 55 50 46 | 74 82 80 | 1450 | 37.0 | 4.5 | 451 | 200-500/425 | 176.4 252 201.4 | 49 70 84 | 60 55 49 | 74 78 77 | 1450 | 55 | 3.0 | 700 | |
| 100-250/230（I） | 83 138 166 | 21.7 38.3 46.1 | 65 60 55 | 67 76 73 | 2900 | 37.0 | 4.5 | 430 | 200-500/485 | 189 270 324 | 52.5 75 90 | 67 60 55 | 76 79 78 | 1450 | 75 | 3.0 | 835 | |
| 100-250/245（I） | 90 150 180 | 25 41.7 50 | 76 70 64 | 68 77 75 | 2900 | 45.0 | 4.5 | 495 | 200-500/505 | 201.6 288 345.6 | 56 80 96 | 77 70 67 | 76 82 80 | 1450 | 90 | 3.0 | 1290 | |
| 100-250/255（I） | 96 160 192 | 26.7 44.4 53.3 | 87 80 73 | 68 80 77 | 2900 | 55.0 | 4.5 | 580 | 200-500/540 | 210 300 360 | 58.3 83.3 100 | 87 80 75 | 77 83 81 | 1450 | 110 | 3.0 | 1415 | |
| 100-315/285（I） | 80.5 134 161 | 22.4 37.2 44.7 | 96 88 86 | 67 72 68 | 2900 | 55.0 | 4.5 | 590 | 200-315/235（I） | 226 322 419 | 62.8 89.4 116.4 | 15.5 14 10 | 73 78 83 | 1450 | 18.5 | 4.0 | 390 | |
| 100-315/295（I） | 86 143 172 | 23.8 39.7 47.8 | 106.4 111 95.2 | 68 73 69 | 2900 | 75.0 | 4.5 | 710 | 200-315/245（I） | 250 358 465 | 69.4 99.4 129.2 | 19 17 13 | 76 81 73 | 1450 | 22.0 | 4.0 | 430 | |
| 100-315/307（I） | 90 150180 | 25 41.7 50 | 117 110 104.6 | 68 73 74 | 2900 | 75.0 | 4.5 | 715 | 200-315/252（I） | 280 400 520 | 77.8 111.1 144.4 | 22.2 20 14 | 78 83 75 | 1450 | 30.0 | 4.0 | 480 | |
| 100-315/321（I） | 96 160 192 | 26.7 44.7 53.3 | 133 125 119 | 73 75 71 | 2900 | 90.0 | 4.5 | 800 | 200-315/295（I） | 242 346 450 | 67.2 96.1 125 | 27.5 24 18.5 | 74 81 75 | 1450 | 37.0 | 4.0 | 535 | |
| 150-250/235 | 117 167 217.5 | 32.5 46.4 60.4 | 15.2 14 12 | 74 79 77 | 1450 | 11.0 | 3.0 | 245 | 200-315/307（I） | 262 374 486 | 72.8 103.9 135 | 31.5 28 25 | 75 81 77 | 1450 | 45.0 | 4.0 | 560 | |
注：尺寸最終以訂貨后提供尺寸為準。
ISB、IRB、IHB、YB系列便拆式離心泵性能參數表 III
| 型號 | 流量 | 揚程 m | 效率 % | 轉速 r/min | 電機功率 | 必需氣蝕余量 | 重量 Kg | 型號 | 流量 | 揚程 m | 效率 % | 轉速 r/min | 電機功率 | 必需氣蝕余量 | 重量 Kg | |||
| m3/h | L/S | m3/h | L/S | |||||||||||||||
| 200-315/321（I） | 280 400 520 | 77.8 111.1 144.4 | 36 32 26 | 76 83 78 | 1450 | 55.0 | 4.0 | 680 | 300-500/465 | 432 609 728 | 117.6 169.3 202.2 | 65 62 56 | 74 86 75 | 1450 | 160 | 5.5 | 1980 | |
| 200-400/365（I） | 224 320 416 | 62.2 88.9 115.6 | 34.9 32 25 | 70 79 70 | 1450 | 45 | 4.0 | 585 | 300-500/505 | 460 662 791 | 127.8 184 219.8 | 74 70.5 63.5 | 76 82 77 | 1450 | 200 | 5.5 | 2150 | |
| 200-400/375（I） | 242 346 450 | 67.2 96.1 125 | 42 38 29.6 | 75 81 72 | 1450 | 55 | 4.0 | 700 | 300-500/540 | 500 720 900 | 138.9 200 250 | 86 80 72 | 77 83 78 | 1450 | 250 | 5.5 | 2280 | |
| 200-400/385（I） | 262 352 486 | 72.8 103.9 135 | 48 44 35 | 75 83 79 | 1450 | 75 | 4.0 | 835 | 350-410/330 | 620 931 1165 | 172.2 258.6 323.6 | 17.5 15.0 13.0 | 71 78 77 | 970 | 55 | 5.5 | 1320 | |
| 200-400/400（I） | 280 400 520 | 77.8 111.1 144.4 | 54.5 50 39 | 79 84 79 | 1450 | 75 | 4.0 | 835 | 350-410/375 | 663 995 1240 | 184.2 276.4 345.8 | 20.0 17.0 15.0 | 74 80 78 | 970 | 75 | 5.5 | 1490 | |
| 200-500/425（I） | 224 320 416 | 62.2 88.9 115.6 | 62 56 48 | 74 79 75 | 1450 | 75 | 4.0 | 1050 | 350-410/410 | 718 1080 1345 | 199.4 300.0 373.6 | 23.5 20.0 18.0 | 76 82 80 | 970 | 90 | 5.5 | 1730 | |
| 200-500/465（I） | 242 346 450 | 67.2 96.1 125 | 65 60 54 | 76 80 77 | 1450 | 90 | 5.0 | 1290 | 350-480/425 | 620 931 1165 | 172.2 258.0 323.6 | 26.5 24.0 21.0 | 73 79 75 | 970 | 90 | 5.5 | 1750 | |
| 200-500/505（I） | 262 374 486 | 72.8 103.9 135 | 76 70 63 | 77 82 79 | 1450 | 110 | 5.0 | 1415 | 350-480/450 | 663 995 1245 | 184.2 276.4 345.8 | 30.5 27.0 25.0 | 74 81 76 | 970 | 110 | 5.5 | 1910 | |
| 200-500/540（I） | 280 400 520 | 72.8 141.1 144.4 | 87 80 77 | 76 83 79 | 1450 | 132 | 5.0 | 1595 | 350-480/485 | 718 1080 1345 | 199.4 300.0 375.5 | 36.4 32 28.5 | 79 83 78 | 970 | 110 | 5.5 | 2120 | |
| 250-250/245 | 368 506 607 | 102.2 140.6 168.7 | 19.5 17 14.6 | 76 80 82 | 1450 | 37 | 5.0 | 550 | 350-400/375 | 620 931 1165 | 172.2 258.6 323.6 | 42.5 38.0 32.3 | 75 79 74 | 1450 | 132 | 5.5 | 1620 | |
| 250-250/255 | 400 550 670 | 111.1 152.8 186.1 | 22.5 20 16 | 81 85 87 | 1450 | 45 | 5.0 | 620 | 350-400/385 | 663 995 1245 | 184.2 276.2 345.8 | 48.3 44.0 36.8 | 77 81 76 | 1450 | 160 | 5.5 | 2030 | |
| 250-315/295 | 339 466 559 | 94 129.3 155.2 | 26.5 25 20 | 74 76 78 | 1450 | 45 | 5.0 | 695 | 350-400/400 | 718 1080 1345 | 199.4 300.0 373.6 | 54.7 50.0 44.2 | 78 82 77 | 1450 | 200 | 5.5 | 2120 | |
| 250-315/307 | 368 506 607 | 102.2 140.6 168.7 | 31.5 28 23 | 75 78 80 | 1450 | 55 | 5.0 | 840 | 350-450/425 | 620 931 1165 | 172.2 258.6 323.6 | 51.3 46.1 41.3 | 78 78 78 | 1450 | 160 | 5.5 | 2050 | |
| 250-315/321 | 400 550 670 | 111.1 152.8 186.1 | 36 32 26 | 77 80 81 | 1450 | 75 | 5.0 | 915 | 350-450/435 | 663 995 1245 | 184.2 276.4 345.8 | 59.2 54.0 48.0 | 80 80 80 | 1450 | 200 | 5.5 | 2430 | |
| 250-400/365 | 311 428 514 | 86.5 119 142.8 | 38 35 30 | 66 72 68 | 1450 | 75 | 5.0 | 910 | 350-450/450 | 718 1080 1345 | 199.4 300.0 373.6 | 64.8 60.0 55.0 | 80 80 80 | 1450 | 250 | 5.5 | 2630 | |
| 250-400/375 | 339 466 559 | 94 129.3 155.2 | 43 39.5 33.5 | 69 75 74 | 1450 | 75 | 5.0 | 910 | 350-350/325（I） | 900 1080 1300 | 250 300 361 | 11.5 10.5 9 | 76 60 76 | 970 | 45 | 6.0 | 1150 | |
| 250-400/385 | 368 506 607 | 102.2 140.6 168.7 | 48 44 37.5 | 70 75 75 | 1450 | 90 | 5.0 | 1055 | 350-350/355（I） | 1000 1200 1450 | 277.8 333.3 402.8 | 13.5 12.5 10.5 | 76 80 77 | 970 | 55 | 6.0 | 1250 | |
| 250-400/400 | 400 550 670 | 111.1 152.8 186.1 | 54.4 50 40 | 72 79 75 | 1450 | 110 | 5.0 | 1557 | 350-480/450（I） | 900 1080 1300 | 250 300 361 | 19 17 14 | 76 81 77 | 970 | 75 | 6.0 | 1350 | |
| 250-500/425 | 311 428 514 | 86.5 119 142.8 | 58 55 48.5 | 72 74 73 | 1450 | 110 | 5.0 | 1350 | 350-480/485（I） | 1000 1200 1450 | 277.8 333.3 402.8 | 23 20 16 | 79 83 79 | 970 | 90 | 6.0 | 1580 | |
| 250-500/465 | 339 466 559 | 94 129.3 155.2 | 66.5 63.5 55.5 | 73 76 75 | 1450 | 132 | 5.0 | 1420 | 350-315/295（I） | 745 985 1182 | 207 273 328 | 27 25 20 | 74 78 75 | 1450 | 110 | 6.0 | 1650 | |
| 250-500/505 | 368 506 670 | 102.2 140.6 168.7 | 75 71 62.5 | 75 78 77 | 1450 | 160 | 5.0 | 1560 | 350-315/301（I） | 900 1080 1300 | 250 300 361 | 31.5 28 23 | 78 79 76 | 1450 | 132 | 6.0 | 1720 | |
| 250-500/540 | 400 550 670 | 111.1 152.8 186.1 | 84 80 70 | 73 80 78 | 1450 | 200 | 5.0 | 1750 | 350-315/321（I） | 1000 1200 1450 | 277.8 333.3 402.8 | 36 32 26 | 77 81 78 | 1450 | 160 | 6.0 | 1870 | |
| 300/250/245 | 460 662 791 | 127.8 184 219.8 | 20.2 17.5 14.2 | 82 84 86 | 1450 | 45 | 5.0 | 785 | 350-400/365（I） | 720 900 990 | 200 250 275 | 37 33 30 | 68 70 70 | 1450 | 132 | 6.0 | 1810 | |
| 300/250/255 | 500 720 900 | 138.9 200 250 | 23 20 16 | 83 86 87 | 1450 | 55 | 5.0 | 900 | 350-400/375（I） | 745 985 1182 | 207 273 328 | 42 38.5 34 | 68 73 71 | 1450 | 160 | 6.0 | 2000 | |
| 300-315/295 | 423 609 728 | 117.6 169.3 202.2 | 25.5 23.5 20 | 75 81 76 | 1450 | 55 | 5.0 | 1080 | 350-400/385（I） | 900 1080 1300 | 250 300 361 | 47.5 44 38 | 71 75 73 | 1450 | 200 | 6.0 | 2100 | |
| 300-315/307 | 460 662 791 | 127.8 184 219.8 | 30.5 28 23.5 | 77 83 77 | 1450 | 75 | 5.0 | 1250 | 350-400/400（I） | 1000 1200 1450 | 277.8 333.3 402.8 | 55 50 43 | 73 77 75 | 1450 | 250 | 6.0 | 2350 | |
| 300-315/321 | 500 720 900 | 138.9 200 250 | 36 32 26 | 82 85 84 | 1450 | 90 | 5.0 | 1350 | 400-300/290 | 1092 1456 1729 | 303.3 404.4 480.3 | 12 10.2 9 | 78 84 81 | 970 | 55 | 6.0 | 1480 | |
| 300-400/365 | 389 561 670 | 108.2 155.7 186 | 35.5 33 27.5 | 72 77 75 | 1450 | 75 | 5.5 | 1250 | 400-300/305 | 1200 1600 1900 | 333.3 444.4 527.6 | 14 12.5 10.5 | 78 87 83 | 970 | 75 | 6.0 | 1650 | |
| 300-400/375 | 423 609 728 | 117.6 169.3 202.2 | 41 38 32 | 75 80 78 | 1450 | 90 | 5.5 | 1400 | 400-350/340 | 1092 1456 1729 | 303.3 404.4 480. | 19.5 17 13 | 80 84 73 | 970 | 90 | 6.0 | 1780 | |
| 300-400/385 | 460 662 728 | 127.8 184 .219.8 | 47 44 36.5 | 77 82 80 | 1450 | 110 | 5.5 | 1520 | 400-350/355 | 1200 1600 1900 | 333.3 444.4 527.6 | 23 20 15 | 81 85 84 | 970 | 110 | 6.0 | 1850 | |
| 300-400/400 | 500 720 900 | 138.9 200 250 | 54.5 50 42 | 79 86 80 | 1450 | 132 | 5.5 | 1725 | 400-400/385 | 994 1325 1573 | 276 368 437.1 | 26 23.5 19 | 79 84 77 | 970 | 132 | 6.0 | 2150 | |
| 300-500/425 | 389 561 670 | 108.2 155.7 186 | 57 54.5 49 | 71 78 73 | 1450 | 132 | 5.5 | 1850 | 400-400/395 | 1092 1456 1729 | 303.3 404.4 480.3 | 30 27.5 22.5 | 83 87 81 | 970 | 160 | 6.0 | 2320 | |
| 4000-400/400 | 1200 1600 1900 | 333.3 444.4 527.8 | 35 32 26 | 84 88 81 | 970 | 200 | 6.0 | 2450 | ||||||||||
注：尺寸最終以訂貨后提供尺寸為準。

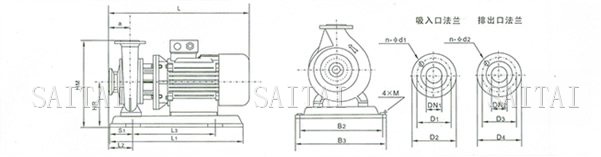

ISB、IRB、IHB、YB系列便拆式離心泵性安裝方式
ISB、IRB、IHB、YB系列便拆式離心泵性安裝方式
ISB、IRB、IHB、YB系列便拆式離心泵安裝尺寸表 I
| 型號 | DN | L | B3 | L1 | L2 | L3 | S1 | HR | HM | a | B2 | 4×M | 吸入口法蘭 | 排出口法蘭 | ||||||
| mm | DN1 | D1 | D2 | n-фd1 | DN2 | D3 | D4 | n-фd2 | ||||||||||||
| 40-100/96 | 40 | 350 | 360 | 340 | 50 | 250 | 45 | 180 | 310 | 80 | 320 | 4×14 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 40-100/106 | 40 | 350 | 360 | 340 | 50 | 250 | 45 | 180 | 310 | 80 | 320 | 4×14 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 40-125/132 | 40 | 350 | 360 | 340 | 50 | 250 | 45 | 180 | 310 | 80 | 320 | 4×14 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 40-125/142 | 40 | 350 | 360 | 340 | 50 | 250 | 45 | 180 | 310 | 80 | 320 | 4×14 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 40-160/142 | 40 | 480 | 360 | 470 | 95 | 300 | 85 | 210 | 370 | 80 | 350 | 4×14 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 40-160/152 | 40 | 480 | 360 | 470 | 95 | 300 | 85 | 210 | 370 | 80 | 350 | 4×14 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 40-160/165 | 40 | 490 | 360 | 470 | 95 | 300 | 85 | 210 | 370 | 80 | 350 | 4×14 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 40-200/185 | 40 | 550 | 390 | 530 | 125 | 300 | 115 | 240 | 410 | 80 | 350 | 4×14 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 40-200/195 | 40 | 550 | 390 | 530 | 125 | 300 | 115 | 240 | 410 | 80 | 350 | 4×14 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 40-200/205 | 40 | 580 | 390 | 530 | 125 | 300 | 115 | 240 | 410 | 80 | 350 | 4×14 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 40-250/235 | 40 | 625 | 450 | 600 | 135 | 350 | 125 | 260 | 460 | 80 | 400 | 4×18 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 40-250/245 | 40 | 625 | 450 | 600 | 135 | 350 | 125 | 260 | 460 | 80 | 400 | 4×18 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 40-250/255 | 40 | 625 | 450 | 600 | 135 | 350 | 125 | 260 | 460 | 80 | 400 | 4×18 | 40 | 110 | 150 | 4-18 | 40 | 110 | 150 | 4-18 |
| 50-100/96 | 50 | 445 | 360 | 420 | 70 | 250 | 85 | 180 | 320 | 80 | 320 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-100/106 | 50 | 445 | 360 | 420 | 70 | 250 | 85 | 180 | 320 | 80 | 320 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-125/135 | 50 | 445 | 360 | 420 | 80 | 250 | 85 | 192 | 340 | 80 | 320 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-125/142 | 50 | 445 | 360 | 420 | 80 | 250 | 85 | 192 | 340 | 80 | 320 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-160/142 | 50 | 450 | 360 | 480 | 90 | 320 | 80 | 210 | 370 | 80 | 320 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-160/152 | 50 | 450 | 360 | 480 | 90 | 320 | 80 | 210 | 370 | 80 | 320 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-160/165 | 50 | 540 | 360 | 520 | 100 | 350 | 85 | 210 | 370 | 80 | 350 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-200/185 | 50 | 540 | 390 | 520 | 70 | 400 | 60 | 240 | 420 | 80 | 400 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-200/195 | 50 | 580 | 390 | 560 | 80 | 470 | 72 | 240 | 420 | 80 | 400 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-200/205 | 50 | 615 | 390 | 590 | 100 | 490 | 95 | 240 | 420 | 80 | 400 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-250/225 | 50 | 665 | 450 | 640 | 160 | 350 | 145 | 260 | 480 | 100 | 400 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-250/235 | 50 | 665 | 450 | 640 | 160 | 350 | 145 | 260 | 480 | 100 | 400 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-250/245 | 50 | 665 | 450 | 640 | 160 | 350 | 145 | 260 | 480 | 100 | 400 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 50-250/255 | 50 | 760 | 490 | 740 | 185 | 400 | 170 | 260 | 480 | 100 | 440 | 4×18 | 50 | 125 | 165 | 4-18 | 50 | 125 | 165 | 4-18 |
| 65-100/96 | 65 | 450 | 360 | 430 | 100 | 250 | 90 | 180 | 340 | 80 | 320 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-100/106 | 65 | 460 | 360 | 440 | 105 | 250 | 98 | 180 | 340 | 80 | 320 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-125/132 | 65 | 505 | 360 | 480 | 130 | 250 | 117 | 192 | 360 | 80 | 320 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-125/142 | 65 | 540 | 390 | 520 | 150 | 300 | 130 | 192 | 360 | 80 | 350 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-160/142 | 65 | 450 | 390 | 520 | 130 | 300 | 110 | 212 | 360 | 80 | 320 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
注：尺寸最終以訂貨后提供尺寸為準。
ISB、IRB、IHB、YB系列便拆式離心泵安裝尺寸表 II
| 型號 | DN | L | B3 | L1 | L2 | L3 | S1 | HR | HM | a | B2 | 4×M | 吸入口法蘭 | 排出口法蘭 | ||||||
| mm | DN1 | D1 | D2 | n-фd1 | DN2 | D3 | D4 | n-фd2 | ||||||||||||
| 65-160/152 | 65 | 450 | 390 | 520 | 130 | 300 | 110 | 212 | 390 | 80 | 320 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-160/165 | 65 | 580 | 390 | 560 | 150 | 300 | 130 | 212 | 390 | 80 | 350 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-200/185 | 65 | 630 | 450 | 610 | 150 | 350 | 130 | 240 | 450 | 100 | 400 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-200/195 | 65 | 630 | 450 | 610 | 150 | 350 | 130 | 240 | 450 | 100 | 400 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-200/205 | 65 | 630 | 450 | 610 | 150 | 350 | 130 | 240 | 450 | 100 | 400 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-250/235 | 65 | 760 | 490 | 740 | 190 | 400 | 170 | 260 | 485 | 100 | 440 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-250/245 | 65 | 760 | 490 | 740 | 190 | 400 | 170 | 260 | 485 | 100 | 440 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-250/255 | 65 | 760 | 490 | 740 | 190 | 400 | 170 | 260 | 485 | 100 | 440 | 4×14 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-315/285 | 65 | 835 | 540 | 810 | 200 | 450 | 180 | 280 | 550 | 125 | 490 | 4×18 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-315/295 | 65 | 835 | 540 | 810 | 190 | 450 | 180 | 280 | 550 | 125 | 490 | 4×18 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-315/307 | 65 | 865 | 540 | 840 | 210 | 450 | 195 | 280 | 550 | 125 | 490 | 4×18 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 65-315/316 | 65 | 970 | 540 | 840 | 230 | 540 | 205 | 300 | 570 | 125 | 490 | 4×18 | 65 | 145 | 185 | 4-18 | 65 | 145 | 185 | 4-18 |
| 80-100/96 | 80 | 530 | 360 | 500 | 115 | 300 | 105 | 190 | 350 | 100 | 320 | 4×14 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-100/106 | 80 | 565 | 390 | 540 | 130 | 300 | 120 | 190 | 350 | 100 | 320 | 4×14 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-125/132 | 80 | 600 | 390 | 580 | 100 | 400 | 90 | 210 | 370 | 100 | 350 | 4×14 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-125/142 | 80 | 640 | 400 | 620 | 125 | 400 | 110 | 210 | 370 | 100 | 350 | 4×14 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-160/142 | 80 | 630 | 450 | 630 | 150 | 350 | 130 | 240 | 420 | 100 | 400 | 4×14 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-160/152 | 80 | 630 | 450 | 630 | 150 | 350 | 130 | 240 | 420 | 100 | 400 | 4×14 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-160/165 | 80 | 630 | 450 | 630 | 150 | 350 | 130 | 240 | 420 | 100 | 400 | 4×14 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-200/185 | 80 | 670 | 490 | 630 | 145 | 400 | 125 | 240 | 440 | 100 | 440 | 4×18 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-200/195 | 80 | 675 | 490 | 630 | 145 | 400 | 125 | 240 | 440 | 100 | 440 | 4×18 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-200/205 | 80 | 675 | 490 | 630 | 145 | 400 | 125 | 240 | 440 | 100 | 440 | 4×18 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-250/235 | 80 | 790 | 485 | 770 | 185 | 400 | 165 | 260 | 485 | 125 | 440 | 4×18 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-250/245 | 80 | 835 | 485 | 810 | 230 | 400 | 205 | 260 | 485 | 125 | 440 | 4×18 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-250/255 | 80 | 860 | 485 | 840 | 190 | 500 | 170 | 260 | 485 | 125 | 490 | 4×18 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-315/285 | 80 | 970 | 605 | 950 | 230 | 540 | 205 | 305 | 605 | 125 | 550 | 4×18 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-315/295 | 80 | 970 | 605 | 950 | 230 | 540 | 205 | 305 | 605 | 125 | 550 | 4×18 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-315/301 | 80 | 970 | 605 | 950 | 230 | 540 | 205 | 305 | 605 | 125 | 550 | 4×18 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 80-315/321 | 80 | 970 | 605 | 950 | 230 | 540 | 205 | 305 | 605 | 125 | 550 | 4×18 | 80 | 160 | 200 | 8-18 | 80 | 160 | 200 | 8-18 |
| 100-200/195 | 100 | 591 | 450 | 560 | 100 | 400 | 80 | 240 | 420 | 100 | 350 | 4×18 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-200/205 | 100 | 626 | 450 | 600 | 120 | 400 | 100 | 240 | 420 | 100 | 400 | 4×18 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-250/245 | 100 | 634 | 450 | 605 | 120 | 400 | 102 | 240 | 420 | 100 | 440 | 4×18 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
注：尺寸最終以訂貨后提供尺寸為準。
ISB、IRB、IHB、YB系列便拆式離心泵安裝尺寸表 III
| 型號 | DN | L | B3 | L1 | L2 | L3 | S1 | HR | HM | a | B2 | 4×M | 吸入口法蘭 | 排出口法蘭 | ||||||
| Mm | DN1 | D1 | D2 | n-фd1 | DN2 | D3 | D4 | n-фd2 | ||||||||||||
| 100-250/250 | 100 | 749 | 490 | 710 | 175 | 400 | 155 | 240 | 420 | 100 | 400 | 4×18 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-315/295 | 100 | 765 | 490 | 740 | 150 | 400 | 170 | 240 | 440 | 100 | 440 | 4×18 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-315/307 | 100 | 765 | 490 | 740 | 150 | 400 | 170 | 240 | 440 | 100 | 440 | 4×18 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-315/321 | 100 | 765 | 490 | 740 | 150 | 400 | 170 | 240 | 440 | 100 | 440 | 4×18 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-400/375 | 100 | 750 | 490 | 730 | 95 | 500 | 115 | 260 | 485 | 100 | 440 | 4×22 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-400/385 | 100 | 795 | 490 | 770 | 165 | 400 | 185 | 260 | 485 | 100 | 440 | 4×22 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-400/400 | 100 | 820 | 540 | 800 | 180 | 400 | 200 | 260 | 485 | 100 | 440 | 4×22 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-250/230（I） | 100 | 949 | 610 | 710 | 95 | 540 | 85 | 300 | 550 | 125 | 550 | 4×24 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-250/245（I） | 100 | 949 | 610 | 710 | 95 | 540 | 85 | 300 | 550 | 125 | 550 | 4×24 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-250/255（I） | 100 | 949 | 610 | 710 | 95 | 540 | 85 | 300 | 550 | 125 | 550 | 4×24 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-315/285（I） | 100 | 1050 | 660 | 1000 | 220 | 600 | 200 | 325 | 605 | 125 | 600 | 4×24 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-315/295（I） | 100 | 1050 | 660 | 1000 | 220 | 600 | 200 | 325 | 605 | 125 | 600 | 4×24 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-315/307（I） | 100 | 1085 | 660 | 1030 | 235 | 600 | 215 | 325 | 605 | 125 | 600 | 4×24 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 100-315/321（I） | 100 | 1415 | 730 | 1360 | 390 | 600 | 380 | 325 | 605 | 125 | 600 | 4×24 | 100 | 180 | 220 | 8-18 | 100 | 180 | 220 | 8-18 |
| 125-200/195 | 125 | 710 | 490 | 690 | 155 | 400 | 145 | 260 | 460 | 125 | 440 | 4×18 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-200/205 | 125 | 785 | 490 | 760 | 195 | 400 | 180 | 260 | 460 | 125 | 440 | 4×18 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-250/245 | 125 | 785 | 490 | 760 | 195 | 400 | 180 | 260 | 480 | 125 | 440 | 4×18 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-250/255 | 125 | 785 | 490 | 760 | 250 | 500 | 230 | 260 | 480 | 125 | 440 | 4×18 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-315/295 | 125 | 785 | 490 | 760 | 200 | 400 | 180 | 260 | 485 | 125 | 440 | 4×23 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-315/307 | 125 | 840 | 490 | 810 | 215 | 400 | 205 | 260 | 485 | 125 | 440 | 4×23 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-315/321 | 125 | 860 | 540 | 840 | 250 | 500 | 170 | 260 | 485 | 125 | 490 | 4×23 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-400/375 | 125 | 855 | 540 | 830 | 185 | 500 | 165 | 280 | 655 | 125 | 490 | 4×23 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-400/385 | 125 | 970 | 610 | 950 | 225 | 540 | 205 | 280 | 655 | 125 | 550 | 4×23 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-400/400 | 125 | 970 | 610 | 950 | 225 | 540 | 205 | 280 | 655 | 125 | 550 | 4×23 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-250/230（I） | 125 | 970 | 610 | 950 | 195 | 600 | 175 | 325 | 605 | 125 | 550 | 4×28 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-250/245（I） | 125 | 1030 | 610 | 1000 | 210 | 600 | 200 | 325 | 605 | 125 | 550 | 4×28 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-250/255（I） | 125 | 1100 | 660 | 1060 | 240 | 600 | 230 | 325 | 605 | 125 | 550 | 4×28 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-315/285（I） | 125 | 1190 | 730 | 1160 | 290 | 600 | 280 | 350 | 665 | 125 | 600 | 4×28 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-315/295（I） | 125 | 1190 | 730 | 1160 | 290 | 600 | 280 | 350 | 665 | 125 | 670 | 4×28 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-315/307（I） | 125 | 1190 | 730 | 1160 | 290 | 600 | 280 | 350 | 665 | 125 | 670 | 4×28 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 125-315/321（I） | 125 | 1230 | 730 | 2000 | 310 | 600 | 300 | 350 | 665 | 125 | 670 | 4×28 | 125 | 210 | 230 | 8-18 | 125 | 210 | 230 | 8-18 |
| 150-250/235 | 150 | 800 | 610 | 780 | 150 | 500 | 120 | 330 | 685 | 140 | 550 | 4×23 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
注：尺寸最終以訂貨后提供尺寸為準。
ISB、IRB、IHB、YB系列便拆式離心泵安裝尺寸表 III
| 型號 | DN | L | B3 | L1 | L2 | L3 | S1 | HR | HM | a | B2 | 4×M | 吸入口法蘭 | 排出口法蘭 | ||||||
| mm | DN1 | D1 | D2 | n-фd1 | DN2 | D3 | D4 | n-фd2 | ||||||||||||
| 150-250/245 | 150 | 845 | 610 | 820 | 180 | 500 | 160 | 330 | 685 | 140 | 550 | 4×23 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 150-250/255 | 150 | 870 | 610 | 830 | 180 | 500 | 165 | 330 | 685 | 140 | 550 | 4×23 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 150-315/295 | 150 | 910 | 660 | 165 | 165 | 600 | 145 | 380 | 740 | 140 | 600 | 4×23 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 150-315/307 | 150 | 910 | 660 | 165 | 165 | 600 | 145 | 380 | 740 | 140 | 600 | 4×23 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 150-315/321 | 150 | 975 | 660 | 190 | 190 | 600 | 175 | 380 | 760 | 140 | 600 | 4×23 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 150-400/365 | 150 | 990 | 660 | 950 | 200 | 600 | 175 | 415 | 740 | 140 | 600 | 4×28 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 150-400/375 | 150 | 990 | 660 | 950 | 200 | 600 | 175 | 415 | 715 | 140 | 600 | 4×28 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 150-400/385 | 150 | 1050 | 660 | 1000 | 230 | 600 | 200 | 415 | 715 | 140 | 600 | 4×28 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 150-400/400 | 150 | 870 | 660 | 800 | 130 | 600 | 100 | 415 | 715 | 140 | 600 | 4×28 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 150-510/475 | 150 | 1205 | 730 | 1180 | 280 | 660 | 260 | 415 | 1450 | 160 | 670 | 4×28 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 150-510/485 | 150 | 1205 | 730 | 1180 | 280 | 660 | 260 | 415 | 1450 | 160 | 670 | 4×28 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 150-510/795 | 150 | 1205 | 730 | 1180 | 280 | 660 | 260 | 415 | 1450 | 160 | 670 | 4×28 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 150-510/510 | 150 | 1205 | 730 | 1180 | 280 | 660 | 260 | 415 | 1450 | 160 | 670 | 4×28 | 150 | 240 | 285 | 8-22 | 150 | 240 | 285 | 8-22 |
| 200-250/235 | 200 | 907 | 660 | 880 | 160 | 600 | 140 | 360 | 740 | 160 | 600 | 4×23 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-250/245 | 200 | 947 | 660 | 920 | 180 | 600 | 160 | 360 | 740 | 160 | 600 | 4×23 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-250/255 | 200 | 930 | 660 | 900 | 170 | 600 | 150 | 360 | 760 | 160 | 600 | 4×23 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-315/295 | 200 | 995 | 660 | 970 | 200 | 600 | 185 | 380 | 780 | 160 | 600 | 4×23 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-315/307 | 200 | 1050 | 730 | 970 | 180 | 600 | 275 | 415 | 835 | 160 | 670 | 4×23 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-315/321 | 200 | 1050 | 730 | 970 | 180 | 660 | 115 | 415 | 835 | 160 | 670 | 4×23 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-400/365 | 200 | 1075 | 730 | 1000 | 190 | 660 | 170 | 415 | 835 | 160 | 670 | 4×28 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-400/375 | 200 | 1205 | 730 | 1180 | 280 | 660 | 260 | 415 | 855 | 160 | 670 | 4×28 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-400/380 | 200 | 1205 | 730 | 1180 | 280 | 660 | 260 | 415 | 855 | 160 | 670 | 4×28 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-400/400 | 200 | 1205 | 730 | 1180 | 280 | 660 | 260 | 415 | 855 | 160 | 670 | 4×28 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-500/425 | 200 | 1205 | 730 | 1180 | 280 | 660 | 260 | 415 | 855 | 160 | 670 | 4×28 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-500/485 | 200 | 1550 | 810 | 1500 | 370 | 660 | 350 | 415 | 1160 | 160 | 750 | 4×28 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-500/505 | 200 | 1495 | 810 | 1450 | 350 | 800 | 325 | 415 | 1160 | 160 | 750 | 4×28 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-500/540 | 200 | 1495 | 810 | 1450 | 350 | 800 | 325 | 415 | 1160 | 160 | 750 | 4×28 | 200 | 295 | 340 | 12-22 | 200 | 295 | 340 | 12-22 |
| 200-250/235（I） | 205 | 1075 | 730 | 1050 | 210 | 660 | 195 | 415 | 965 | 200 | 670 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 200-250/245（I） | 205 | 1100 | 730 | 1050 | 210 | 660 | 195 | 415 | 965 | 200 | 670 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 200-250/252（I） | 205 | 1185 | 730 | 1150 | 260 | 660 | 245 | 430 | 1030 | 200 | 670 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 200-315/295（I） | 205 | 1255 | 730 | 1230 | 300 | 660 | 285 | 430 | 1030 | 200 | 670 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 200-315/307（I） | 205 | 1255 | 810 | 1230 | 300 | 660 | 285 | 460 | 1160 | 200 | 750 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
注：尺寸最終以訂貨后提供尺寸為準。
ISB、IRB、IHB、YB系列便拆式離心泵安裝尺寸表III
| 型號 | DN | L | B3 | L1 | L2 | L3 | S1 | HR | HM | a | B2 | 4×M | 吸入口法蘭 | 排出口法蘭 | ||||||
| mm | DN1 | D1 | D2 | n-фd1 | DN2 | D3 | D4 | n-фd2 | ||||||||||||
| 200-315/321（I） | 205 | 1305 | 730 | 1270 | 300 | 700 | 285 | 460 | 1160 | 200 | 670 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 200-400/365（I） | 205 | 1205 | 730 | 1180 | 260 | 1000 | 240 | 415 | 815 | 160 | 670 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 200-400/375（I） | 205 | 1205 | 730 | 1180 | 260 | 1000 | 240 | 415 | 815 | 160 | 750 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 200-400/385（I） | 205 | 1205 | 730 | 1180 | 260 | 1000 | 240 | 415 | 815 | 160 | 750 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 200-400/400（I） | 205 | 1205 | 730 | 1810 | 430 | 1000 | 405 | 415 | 815 | 160 | 750 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 200-500/425（I） | 205 | 1495 | 810 | 1460 | 350 | 800 | 330 | 415 | 1160 | 160 | 750 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 200-500/465（I） | 205 | 1495 | 810 | 1460 | 350 | 800 | 330 | 415 | 1160 | 160 | 750 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 200-500/505（I） | 205 | 1495 | 810 | 1460 | 350 | 800 | 330 | 415 | 1160 | 160 | 750 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 200-500/540（I） | 205 | 1495 | 810 | 1460 | 350 | 800 | 330 | 415 | 1160 | 160 | 750 | 4×28 | 200 | 295 | 340 | 12-22 | 150 | 240 | 285 | 8-22 |
| 250-250/245 | 205 | 1075 | 730 | 1030 | 250 | 660 | 235 | 415 | 965 | 200 | 670 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 250-250/255 | 205 | 1100 | 730 | 1050 | 250 | 660 | 235 | 415 | 965 | 200 | 670 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 250-315/295 | 205 | 1185 | 730 | 1140 | 300 | 660 | 285 | 430 | 1030 | 200 | 670 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 250-315/307 | 205 | 1255 | 730 | 1210 | 300 | 660 | 285 | 430 | 1030 | 200 | 670 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 250-315/321 | 205 | 1255 | 730 | 1210 | 300 | 660 | 285 | 430 | 1030 | 200 | 670 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 250-400/365 | 250 | 1235 | 730 | 1200 | 270 | 700 | 250 | 460 | 1150 | 200 | 670 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 250-400/375 | 250 | 1305 | 730 | 1290 | 270 | 700 | 245 | 460 | 1150 | 200 | 670 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 250-400/385 | 250 | 1305 | 730 | 1290 | 270 | 700 | 245 | 460 | 1150 | 200 | 670 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 250-400/400 | 250 | 1495 | 730 | 1470 | 350 | 700 | 335 | 460 | 1150 | 200 | 670 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 250-500/425 | 250 | 1760 | 810 | 1470 | 400 | 1000 | 370 | 520 | 1250 | 200 | 750 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 250-500/465 | 250 | 1760 | 810 | 1470 | 400 | 1000 | 370 | 520 | 1250 | 200 | 750 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 250-500/505 | 250 | 1760 | 810 | 1470 | 400 | 1000 | 370 | 520 | 1250 | 200 | 750 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 250-500/540 | 250 | 1860 | 810 | 1840 | 450 | 1000 | 420 | 520 | 1250 | 200 | 750 | 4×28 | 250 | 355 | 405 | 12-26 | 250 | 355 | 405 | 12-26 |
| 300-250/245 | 300 | 1275 | 730 | 1230 | 300 | 660 | 285 | 450 | 1060 | 250 | 670 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
| 300-250/252 | 300 | 1325 | 730 | 1280 | 330 | 660 | 310 | 450 | 1060 | 250 | 670 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
| 300-315/295 | 300 | 1325 | 730 | 1280 | 330 | 660 | 310 | 460 | 1030 | 250 | 750 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
| 300-315/307 | 300 | 1515 | 730 | 1480 | 440 | 660 | 410 | 460 | 1030 | 250 | 750 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
| 300-315/321 | 300 | 1515 | 820 | 1480 | 370 | 800 | 340 | 460 | 1030 | 250 | 750 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
| 300-400/365 | 300 | 1630 | 910 | 1600 | 320 | 1000 | 300 | 460 | 1250 | 250 | 850 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
| 300-400/375 | 300 | 1660 | 910 | 1620 | 320 | 1000 | 310 | 460 | 1205 | 250 | 850 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
| 300-400/385 | 300 | 1660 | 910 | 1620 | 320 | 1000 | 310 | 460 | 1205 | 250 | 850 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
| 300-400/400 | 300 | 1565 | 810 | 1540 | 300 | 1000 | 270 | 460 | 1160 | 250 | 750 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
| 300-500/425 | 300 | 1635 | 810 | 1600 | 330 | 1000 | 300 | 460 | 1160 | 250 | 750 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
注：尺寸最終以訂貨后提供尺寸為準。
ISB、IRB、IHB、YB系列便拆式離心泵安裝尺寸表 IV
| 型號 | DN | L | B3 | L1 | L2 | L3 | S1 | HR | HM | a | B2 | 4×M | 吸入口法蘭 | 排出口法蘭 | ||||||
| mm | DN1 | D1 | D2 | n-фd1 | DN2 | D3 | D4 | n-фd2 | ||||||||||||
| 300-500-465 | 300 | 1915 | 810 | 1880 | 460 | 1000 | 440 | 550 | 1350 | 250 | 850 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
| 300-500/505 | 300 | 1915 | 910 | 1880 | 460 | 1000 | 440 | 550 | 1350 | 250 | 850 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
| 300-500/540 | 300 | 1915 | 910 | 1880 | 460 | 1000 | 440 | 550 | 1350 | 250 | 850 | 4×28 | 300 | 410 | 460 | 16-26 | 300 | 410 | 460 | 16-26 |
| 350-410/330 | 350 | 1720 | 810 | 1690 | 360 | 100 | 345 | 510 | 1200 | 280 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-410/375 | 350 | 1720 | 810 | 1690 | 360 | 1000 | 345 | 510 | 1200 | 280 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-410/410 | 350 | 1980 | 810 | 1950 | 450 | 1000 | 425 | 550 | 1300 | 280 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-480/425 | 350 | 1980 | 810 | 1950 | 450 | 1000 | 425 | 580 | 1450 | 280 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-480/450 | 350 | 2180 | 910 | 2150 | 580 | 1000 | 575 | 580 | 1450 | 280 | 850 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-480/485 | 350 | 2180 | 910 | 2150 | 580 | 1000 | 575 | 580 | 1450 | 280 | 850 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-400/375 | 350 | 1980 | 910 | 1900 | 500 | 1000 | 450 | 550 | 1300 | 280 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-400/385 | 350 | 1980 | 910 | 1900 | 500 | 1000 | 450 | 550 | 1300 | 280 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-400/400 | 350 | 1980 | 910 | 1900 | 500 | 1000 | 450 | 550 | 1300 | 280 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-450/425 | 350 | 2180 | 910 | 1900 | 610 | 1000 | 550 | 580 | 1450 | 280 | 850 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-450/435 | 350 | 2180 | 910 | 1900 | 610 | 1000 | 550 | 580 | 1450 | 280 | 850 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-450/450 | 350 | 2180 | 910 | 1900 | 610 | 1000 | 550 | 580 | 1450 | 280 | 850 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-350/325（I） | 350 | 1275 | 810 | 1250 | 250 | 800 | 225 | 460 | 1060 | 250 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-350/355（I） | 350 | 1325 | 810 | 1300 | 280 | 800 | 250 | 460 | 1060 | 250 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-480/365（I） | 350 | 1520 | 810 | 1500 | 330 | 900 | 300 | 460 | 1150 | 250 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-480/375（I） | 350 | 1520 | 810 | 1500 | 330 | 900 | 300 | 460 | 1150 | 250 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-315/295（I） | 350 | 1980 | 810 | 1950 | 450 | 1000 | 425 | 550 | 810 | 280 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-315/301（I） | 350 | 1980 | 810 | 1950 | 450 | 1000 | 425 | 550 | 810 | 280 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-315/321（I） | 350 | 1980 | 810 | 1950 | 450 | 1000 | 425 | 550 | 810 | 280 | 750 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-400/365（I） | 350 | 2100 | 910 | 2050 | 550 | 1000 | 525 | 580 | 910 | 280 | 850 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-400/375（I） | 350 | 2100 | 910 | 2050 | 550 | 1000 | 525 | 580 | 910 | 280 | 850 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-400/385（I） | 350 | 2100 | 910 | 2050 | 550 | 1000 | 525 | 580 | 910 | 280 | 850 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 350-400/400（I） | 350 | 2100 | 910 | 2050 | 550 | 1000 | 525 | 580 | 910 | 280 | 850 | 4×28 | 350 | 460 | 550 | 16-26 | 350 | 460 | 550 | 16-26 |
| 400-300/290 | 400 | 1410 | 910 | 1350 | 200 | 1000 | 175 | 460 | 1150 | 250 | 750 | 4×28 | 400 | 515 | 565 | 16-26 | 400 | 515 | 565 | 16-26 |
| 400-300/305 | 400 | 1520 | 910 | 1460 | 250 | 1000 | 230 | 460 | 1150 | 250 | 750 | 4×18 | 400 | 515 | 565 | 16-26 | 400 | 515 | 565 | 16-26 |
| 400-350/340 | 400 | 1630 | 910 | 1560 | 300 | 1000 | 280 | 460 | 1250 | 250 | 850 | 4×18 | 400 | 515 | 565 | 16-26 | 400 | 515 | 565 | 16-26 |
| 400-350/355 | 400 | 1660 | 910 | 1600 | 330 | 1000 | 300 | 460 | 1250 | 250 | 850 | 4×18 | 400 | 515 | 565 | 16-26 | 400 | 515 | 565 | 16-26 |
| 400-400/385 | 400 | 1980 | 910 | 1600 | 510 | 1000 | 490 | 510 | 1300 | 250 | 850 | 4×32 | 400 | 515 | 565 | 16-26 | 400 | 515 | 565 | 16-26 |
| 400-400/395 | 400 | 2050 | 910 | 1600 | 550 | 1000 | 525 | 510 | 1300 | 250 | 850 | 4×32 | 400 | 515 | 565 | 16-26 | 400 | 515 | 565 | 16-26 |
| 400-400/450 | 400 | 2050 | 910 | 1600 | 550 | 1000 | 525 | 510 | 1300 | 250 | 850 | 4×32 | 400 | 515 | 565 | 16-26 | 400 | 515 | 565 | 16-26 |
注：尺寸最終以訂貨后提供尺寸為準。
注：
1.本網頁的IRB型便拆式熱水循環泵、GRB型便拆式高溫離心泵結構、結構圖、尺寸、參數、流量、揚程、電機轉速等主要性能參數，以及安裝尺寸圖、安裝尺寸表均只適用于參考，詳細CAD圖、安裝圖、以及產品說明書請向賽泰水泵營銷人員索取。
2.由于編輯水平有限，錯誤和不妥之處在所難免，真誠希望您批評指正。
IRB型便拆式熱水循環泵、GRB型便拆式高溫離心泵相關產品
下一頁：SLG水冷型低噪音泵
返回至本系列目錄：管道泵
上一頁：ISB型便拆式離心泵
